Express integrated OIDC Single sign-in guide

¶ Express brief description

This article uses the Node.js platform Express framework as an example, and integrated Node.js authentication middleware Passport.js, how to integrate the authing oidc single sign-on.

OIDC protocol: OIDC (OpenID Connect) is an identity authentication standard protocol based on OAuth2 protocol. OIDC uses OAuth2 authorized servers to provide users' identity authentication for third-party clients, and pass the corresponding identity authentication information to the client, and can be applied to various types of clients.

Passport: Passport is the authentication middleware of Node.js, especially flexible and modular. It is very convenient to implant any Express-based web applications. Support authentication such as username password, Facebook and Twitter.

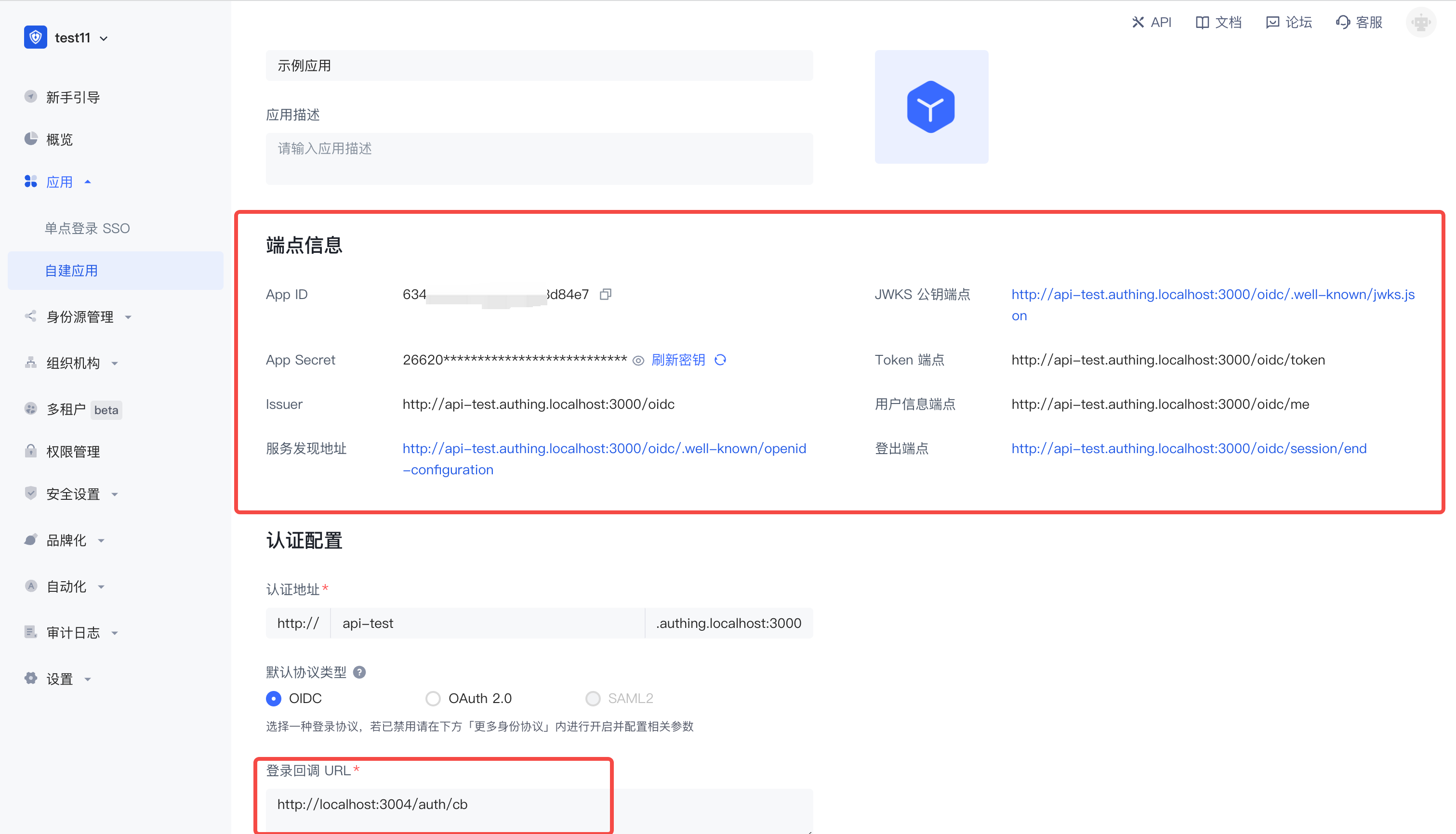

¶ Configure Authing OIDC application

The detailed configuration is as follows:

Application name: Application Name
Certified address: https://App_Domain_Name.authing.cn
Callback URL: Apply login post-callback address, for example: http://localhost:3004/auth/cb
Authorized mode: default authorization_code、refresh_token、authing Token
return Type: default code
token Calculation mode: default client_secret_post
id_token Signature algorithm: default HS256

After the configuration, the OIDC valid information is saved, which is Express to use.

App ID: 5f34e94bece50b891729e345
App Secret: 8226514d6740e5a9cd94fad4991e02e9
Issuer: https://aj00.authing.cn/oauth/oidc
Configuration information: https://aj00.authing.cn/oauth/oidc/.well-known/openid-configuration
Callback address: http://localhost:3004/auth/cb

¶ integrated Authing OIDC application

Express building a local service

const express = require('express')
var app = express()
app.listen(3004, () => console.log(`Example app listening on port 3004!`))

Connect OIDC app, register 'oidc' strategy

const passport = require('passport')
const { Strategy, Issuer } = require('openid-client')
const config = {
  // oidc configuration
  appID: '5f34e94bece50b891729e345',
  appSecret: '8226514d6740e5a9cd94fad4991e02e9',
  issuer: 'https://aj00.authing.cn/oauth/oidc',
  configInfo:
    'https://aj00.authing.cn/oauth/oidc/.well-known/openid-configuration',
  callbackUrl: 'http://localhost:3004/auth/cb',
}(async () => {
  const issuer = await Issuer.discover(config.configInfo) // connect oidc app
  const client = new issuer.Client({
    // initial issuer
    client_id: config.appID,
    client_secret: config.appSecret,
    id_token_signed_response_alg: 'HS256',
    token_endpoint_auth_method: 'client_secret_post',
  })
  const params = {
    redirect_uri: config.callbackUrl,
    scope: 'openid profile email phone',
    grant_type: 'authorization_code',
    response_type: 'code',
  }
  // possport register oidc strategy
  passport.use(
    'oidc',
    new Strategy({ client, params }, (tokenset, userinfo, done) => {
      return done(null, userinfo) // Return user information
    })
  )
})()

Define OIDC access, callback, user information query and other interfaces

app.get('/auth', passport.authenticate('oidc'))
app.get(
  '/auth/cb',
  passport.authenticate('oidc', {
    successRedirect: '/',
    failureRedirect: '/',
  })
)
app.get('/user', (req, res) => {
  res.send(req.user)
})
app.get('/', (req, res) => {
  res.send('home')
})

In addition to the above core steps, store the sessions information, serialized user information, exit, etc., refer to the code files integrated with the complete expression of Express.

const express = require('express')
const session = require('express-session')
const passport = require('passport')
const { Strategy, Issuer } = require('openid-client')
const config = {
  appID: '5f34e94bece50b891729e345',
  appSecret: '8226514d6740e5a9cd94fad4991e02e9',
  issuer: 'https://aj00.authing.cn/oauth/oidc',
  configInfo:
    'https://aj00.authing.cn/oauth/oidc/.well-known/openid-configuration',
  callbackUrl: 'http://localhost:3004/auth/cb',
}(async () => {
  const issuer = await Issuer.discover(config.configInfo)
  const client = new issuer.Client({
    client_id: config.appID,
    client_secret: config.appSecret,
    id_token_signed_response_alg: 'HS256',
    token_endpoint_auth_method: 'client_secret_post',
  })
  const params = {
    redirect_uri: config.callbackUrl,
    scope: 'openid profile email phone',
    grant_type: 'authorization_code',
    response_type: 'code',
  }
  var app = express()
  app.use(
    session({
      secret: 'keyboard cat',
      resave: true,
      saveUninitialized: true,
    })
  )
  app.use(passport.initialize())
  app.use(passport.session())
  passport.use(
    'oidc',
    new Strategy({ client, params }, (tokenset, userinfo, done) => {
      return done(null, userinfo)
    })
  )

  app.get('/auth', passport.authenticate('oidc'))
  app.get(
    '/auth/cb',
    passport.authenticate('oidc', {
      successRedirect: '/',
      failureRedirect: '/user',
    })
  )
  app.get('/user', (req, res) => {
    res.send(req.user)
  })
  app.get('/', (req, res) => {
    res.send('home')
  })
  app.get('/logout', (req, res) => {
    const logoutBaseURL = 'https://aj00.authing.cn/login/profile/logout'
    const appId = '5f17f5d6f64fb07b7094a41b'
    const logoutRedirectURL = 'http://localhost:3004'
    const logoutUrl = `${logoutBaseURL}?app_id=${appId}&redirect_uri=${logoutRedirectURL}`
    req.session.destroy()
    res.redirect(logoutUrl)
  })
  passport.serializeUser(function(user, done) {
    done(null, user)
  })
  passport.deserializeUser(function(id, done) {
    done(null, { client_id: id })
  })
  app.listen(3004, () => console.log(`Example app listening on port 3004!`))
})()
