¶ MFA: Time-Based One-time Password (TOTP) Authentication

¶ Summary

Multi-factor authentication (MFA) is a security system that is a secondary identity verification for verifying the legitimacy of an operation. For example, remote login requires mobile phone SMS verification. Time-Based One-time Password (TOTP) authentication is a way of MFA that constantly generates a new 6-digit password based on a time interval by device.

¶ Before the start

1. Register an Authing account
2. Complete the creation of the user pool and application

¶ Set up a new MFA

1. Login in to https://<your_url>.authing.cn. Then access User Center https://<your_url>.authing.cn/u

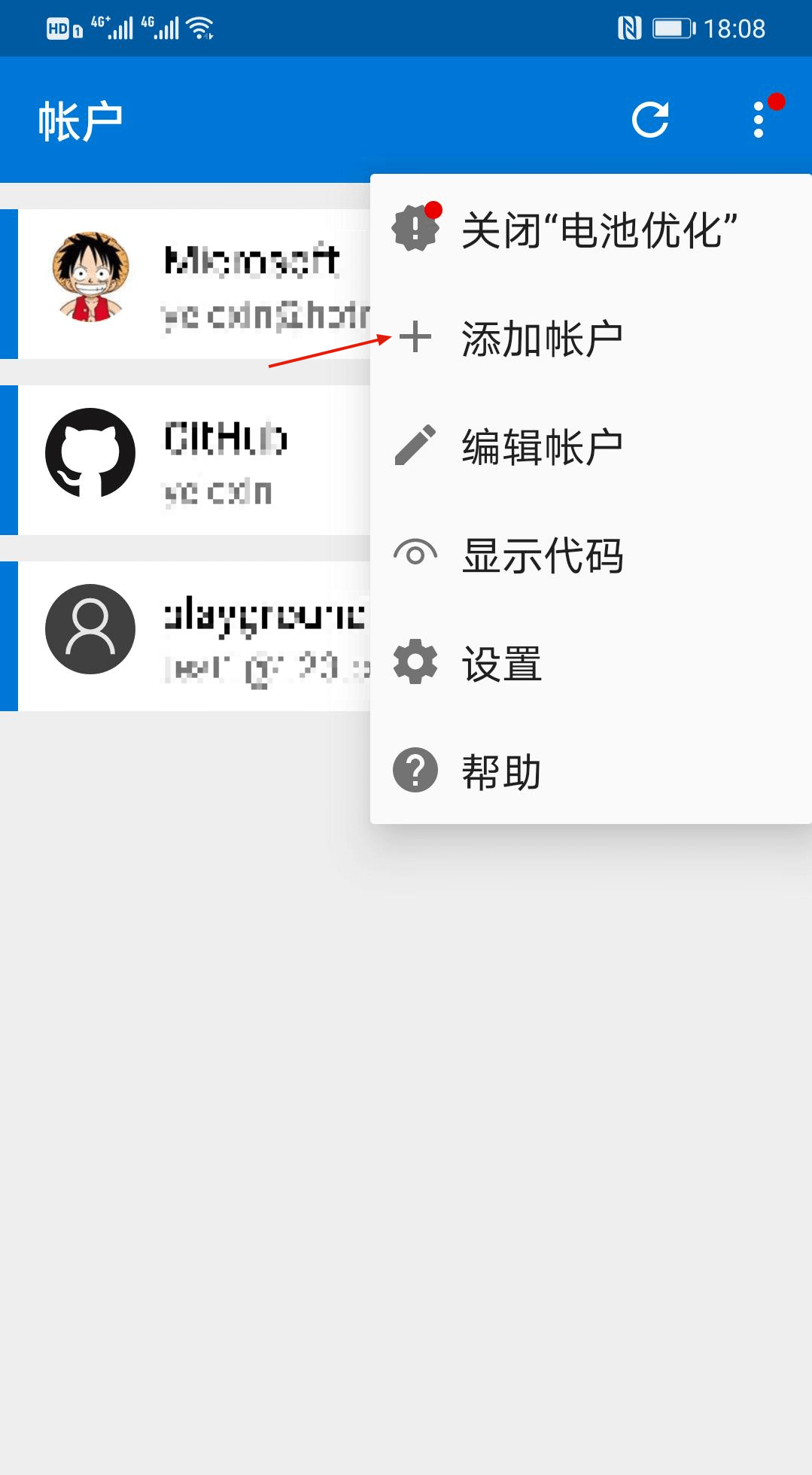

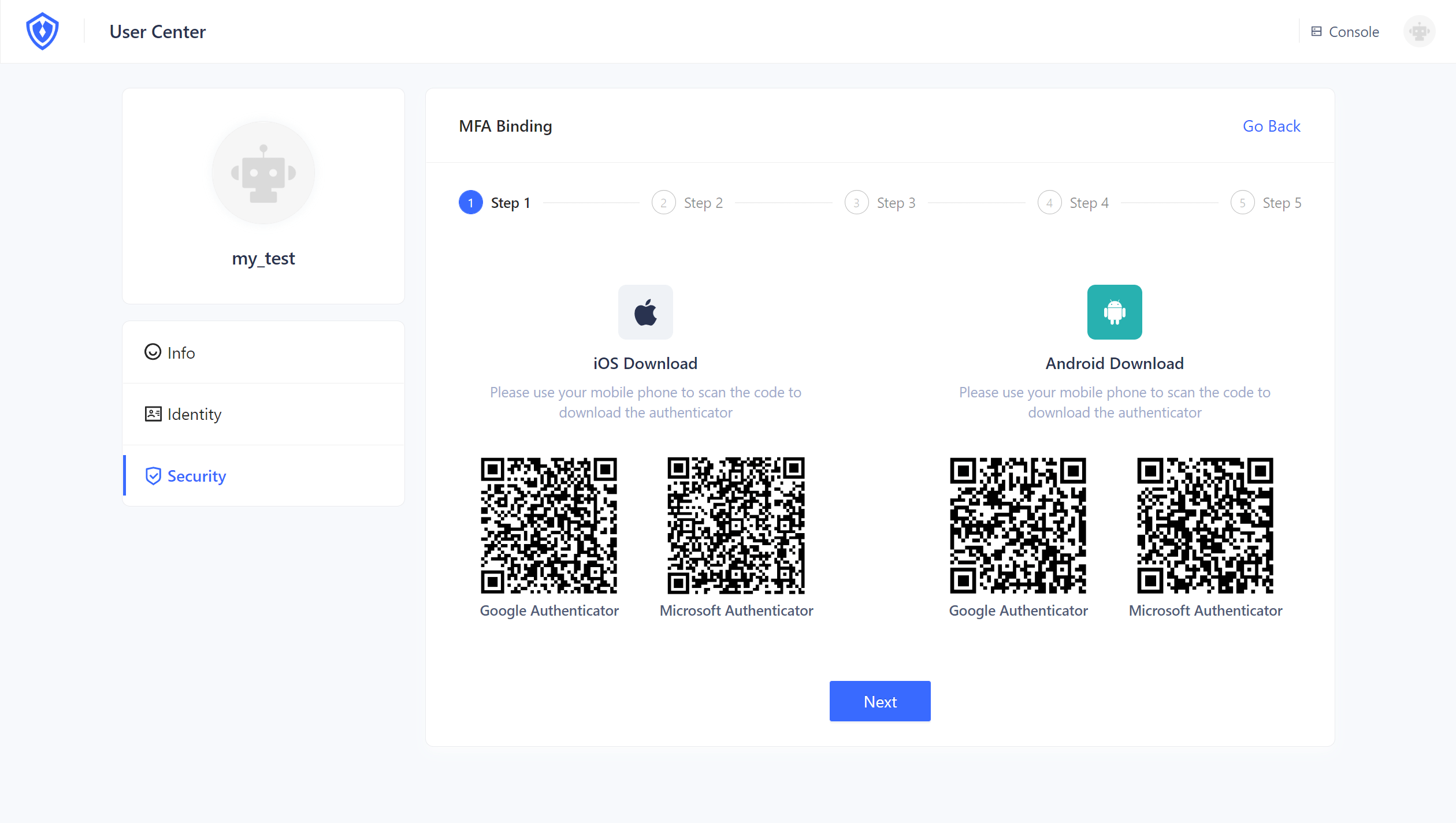

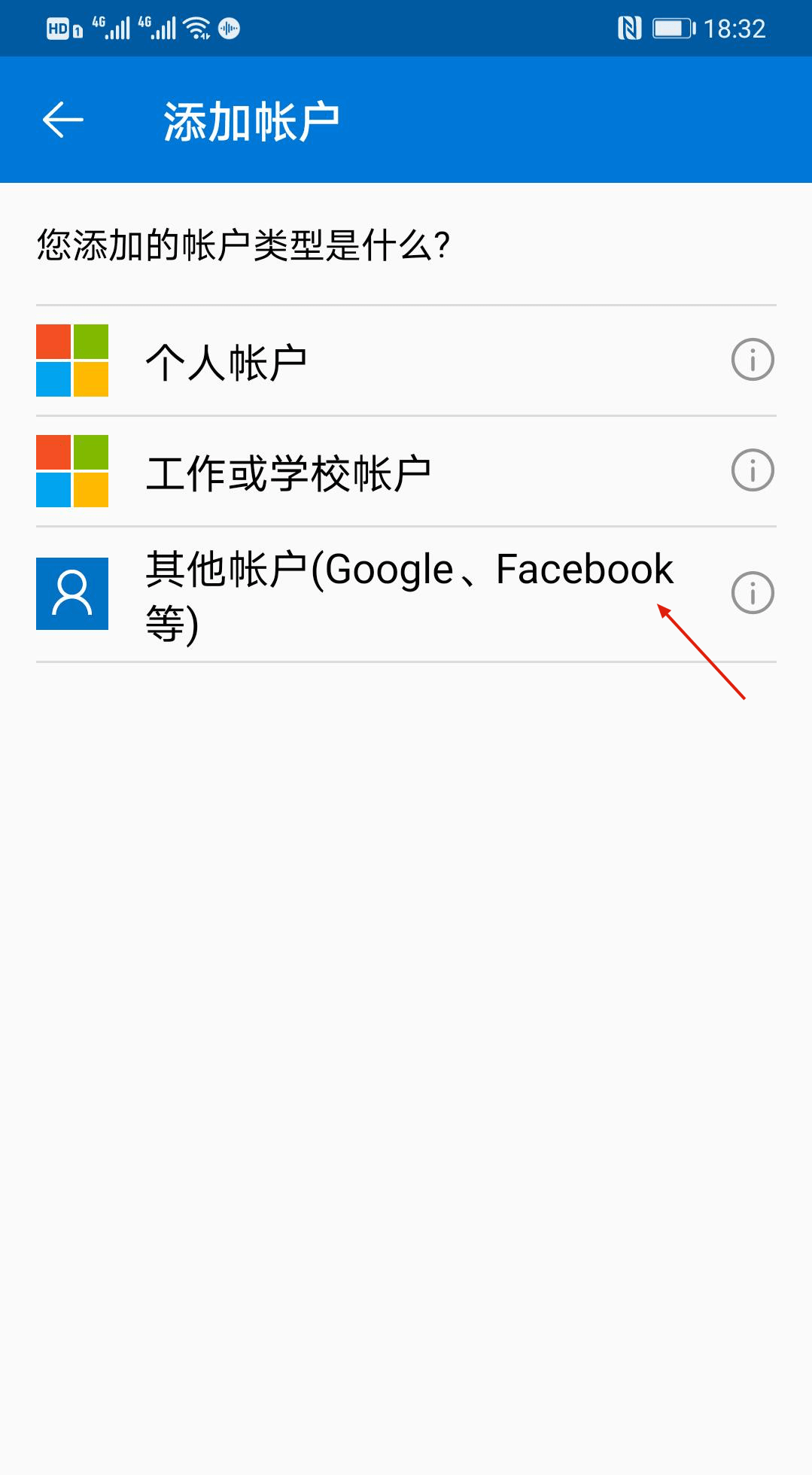

2. Click Set up new MFA, then scan the QR code to add MFA with Google Authenticator/Microsoft Authenticator. Here is a sample with Microsoft Authenticator.

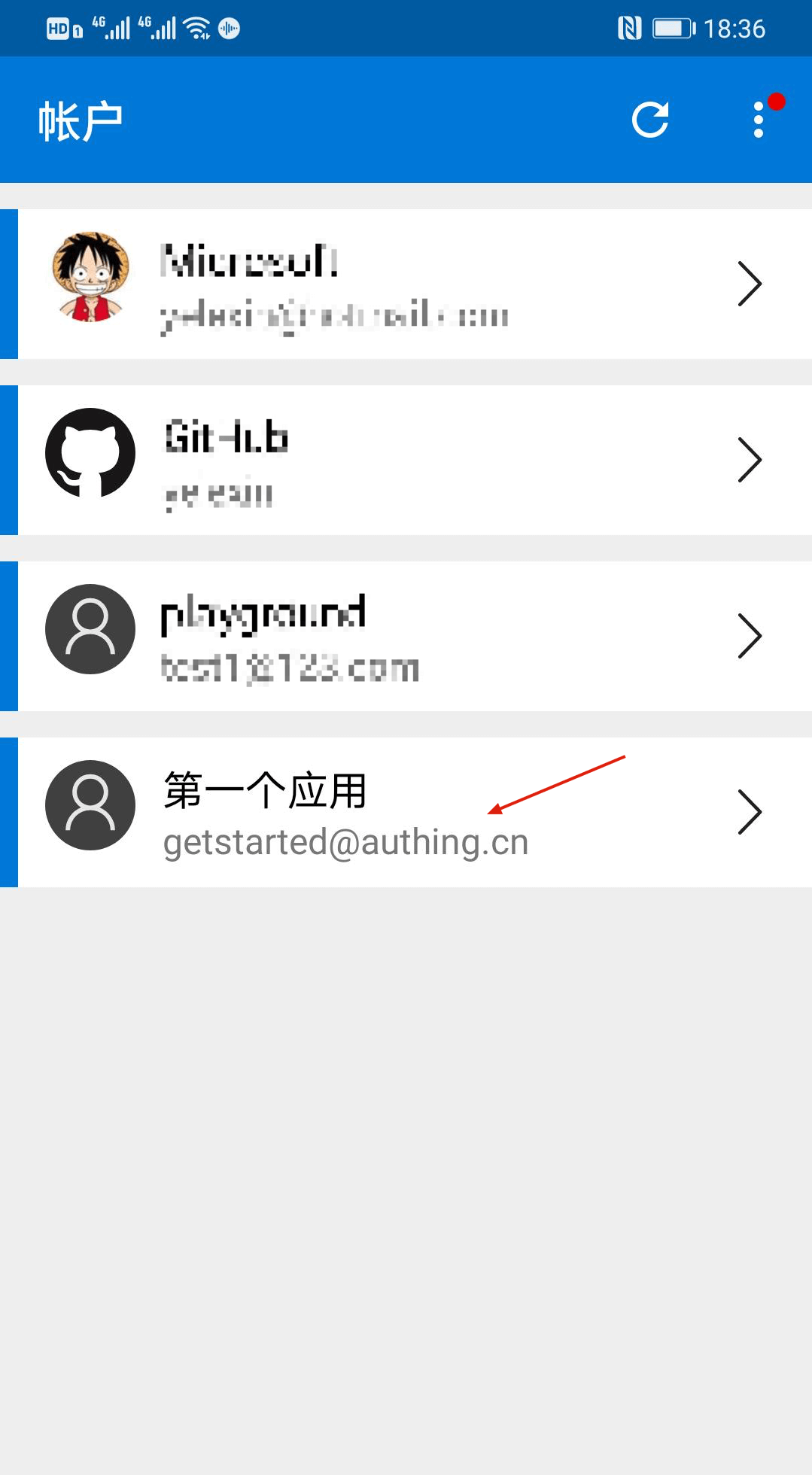

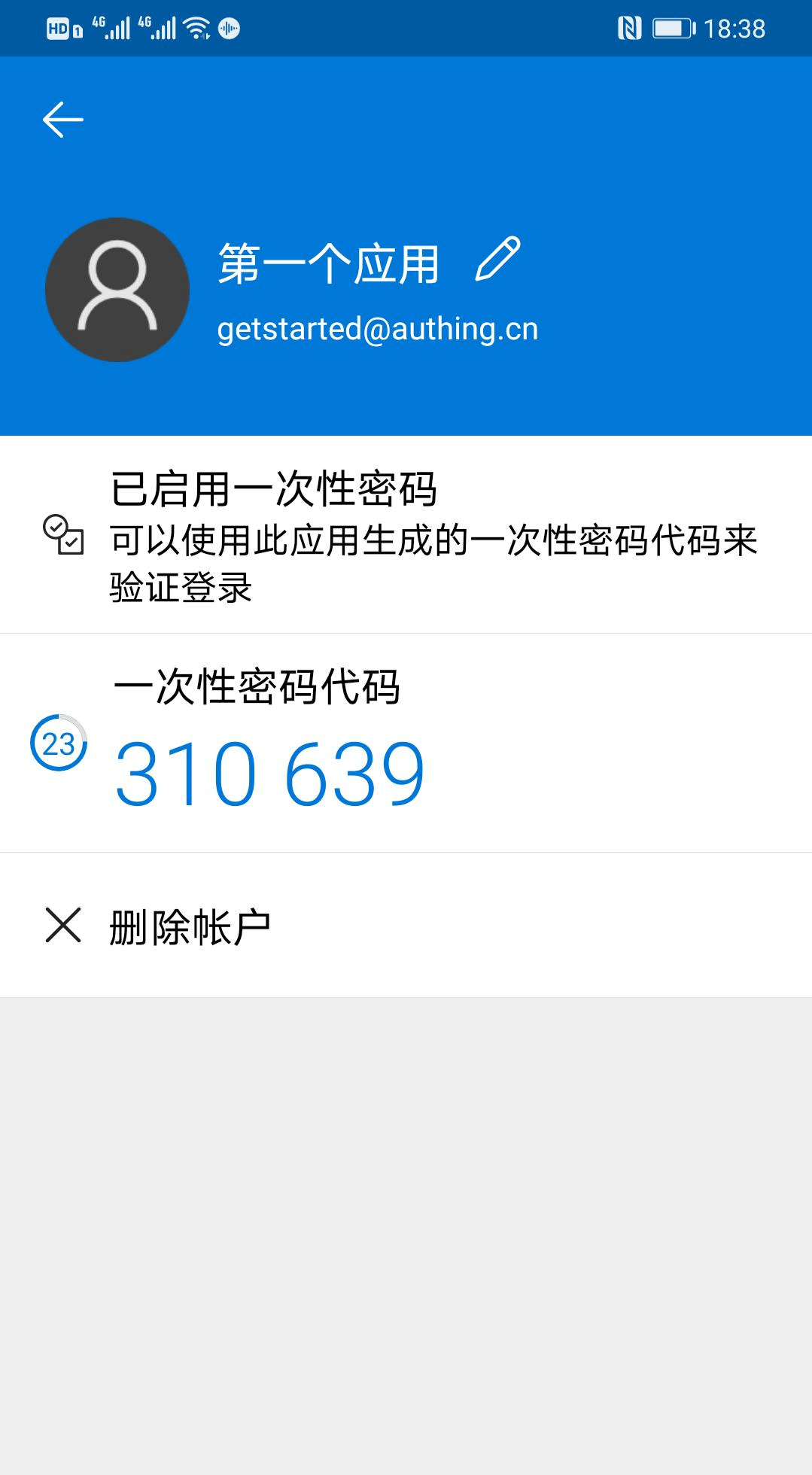

3. Add MFA after scanning the code automatically, you can view the MFA just added in the list

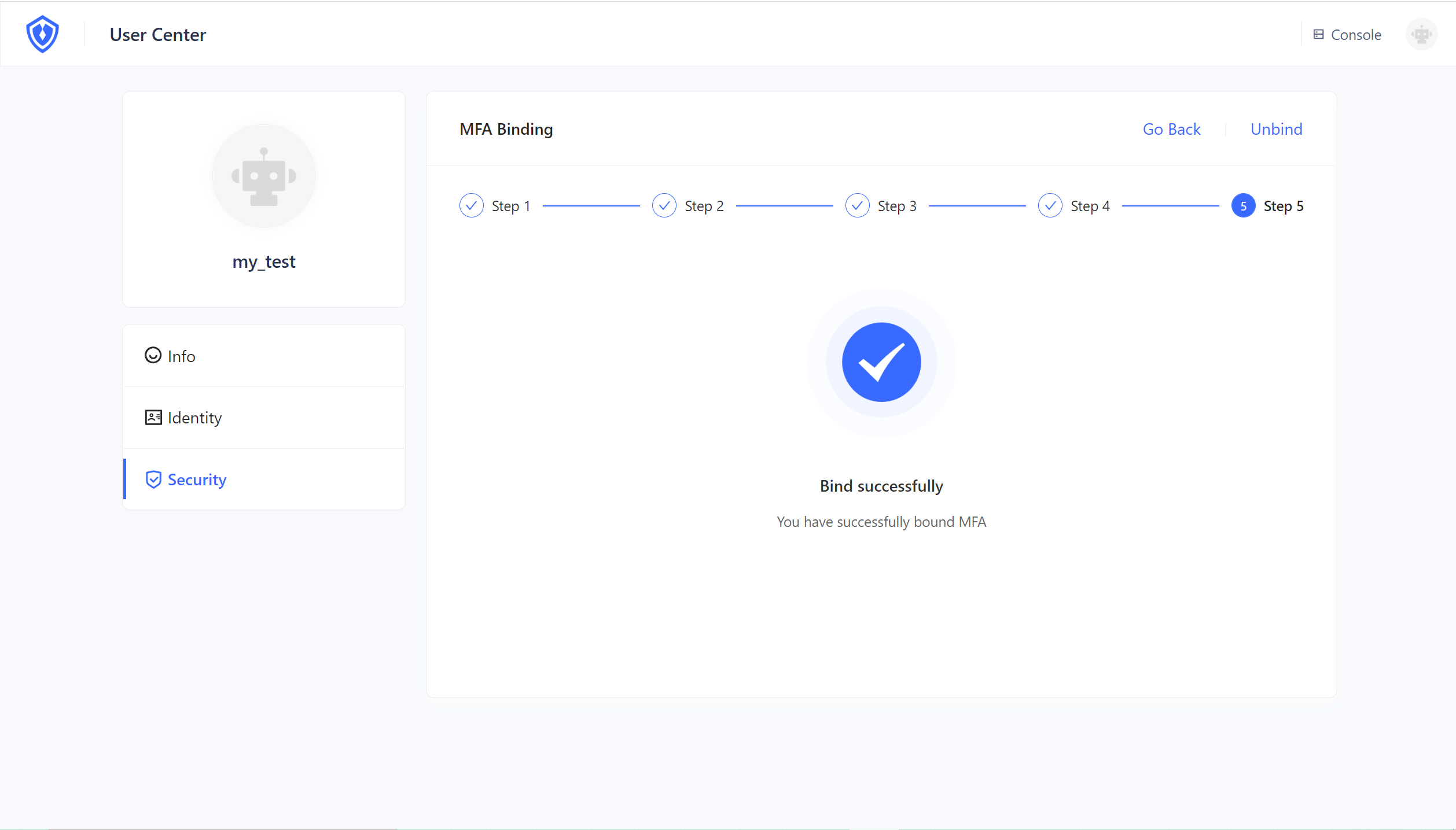

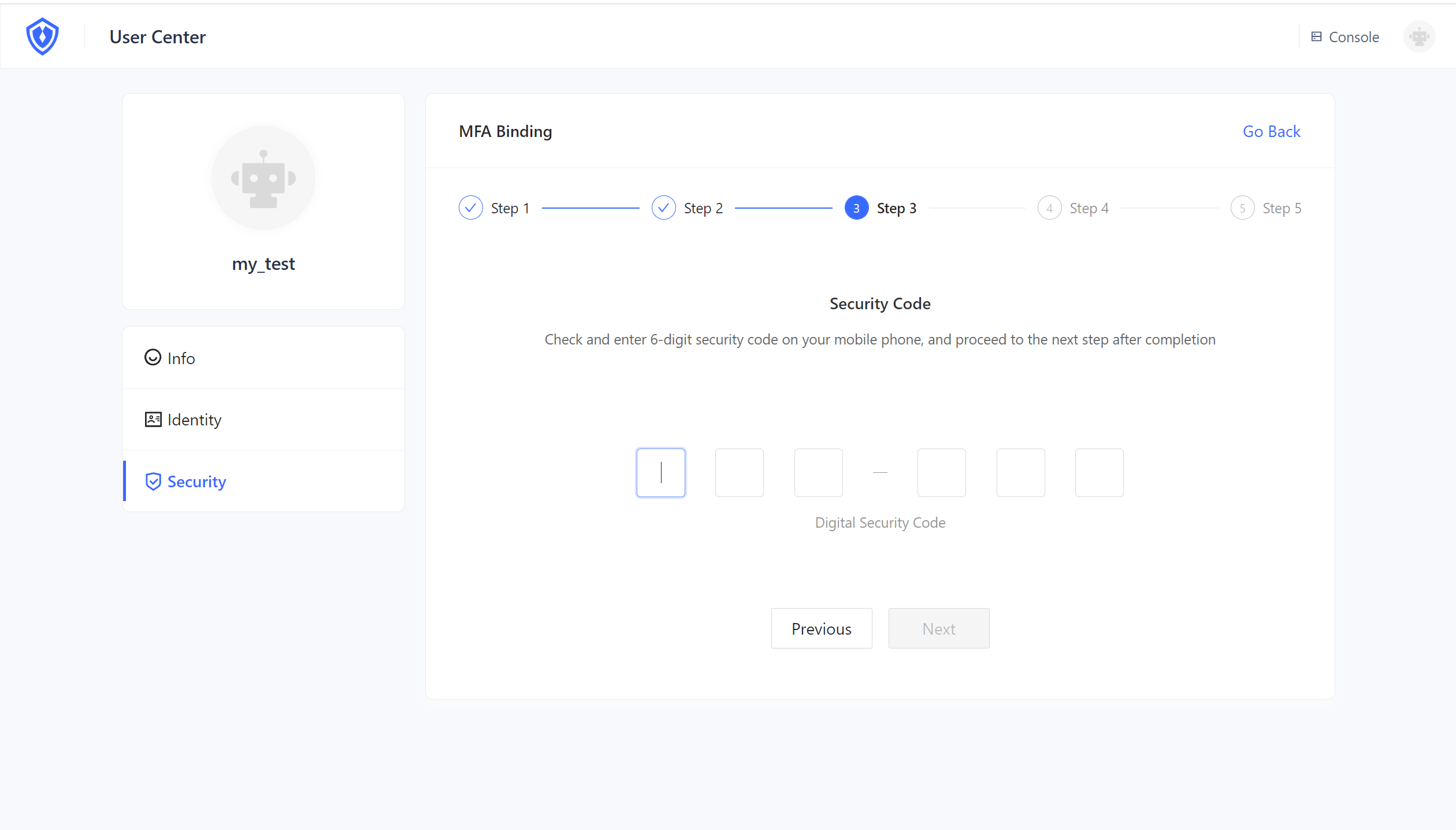

4.Click "Next" in the user center, enter the dynamic password displayed on the newly added MFA, complete the confirmation binding, and click "Next"

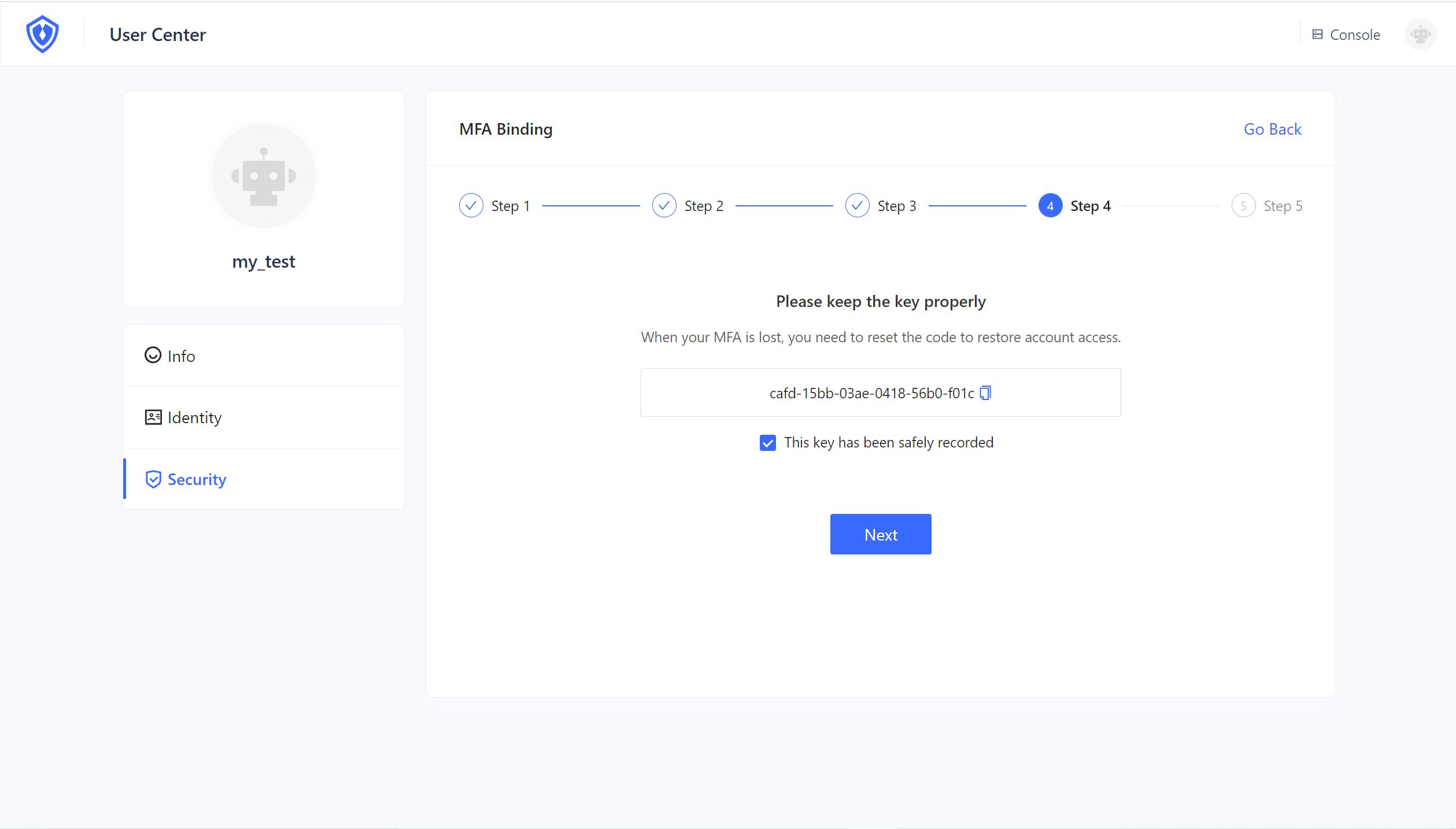

5.Be sure to keep the recovery code shown here safely. If you lose your MFA in the future, you can use this recovery code to restore account access. Click "Next".

¶ Login in with MFA

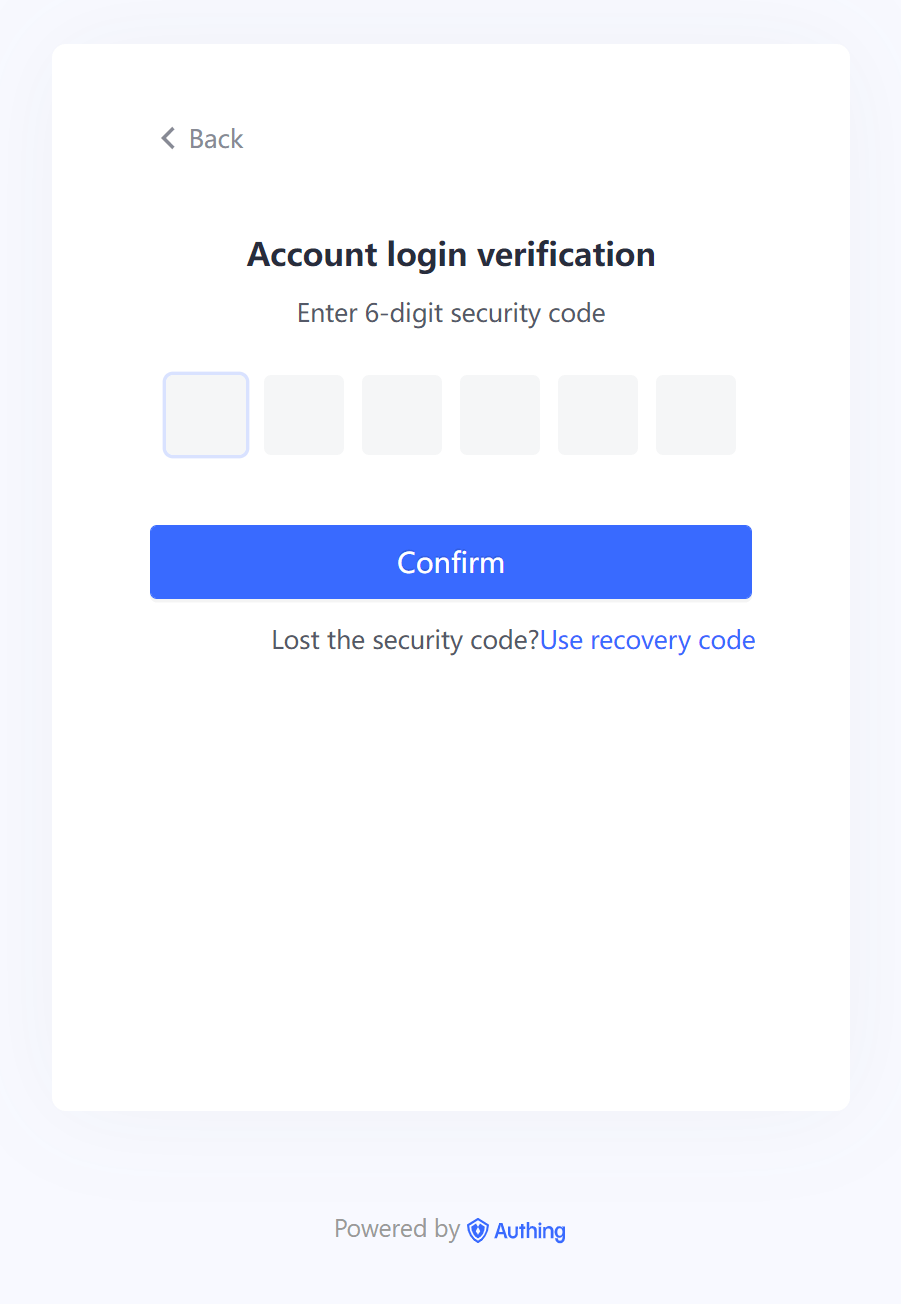

1. Please sign out: https://<your_url>.authing.cn/oidc/session/end. Then access https://<your_url>.authing.cn. You can log in with the account that has just been bound to MFA, and you will be prompted to enter the security password for secondary authentication.

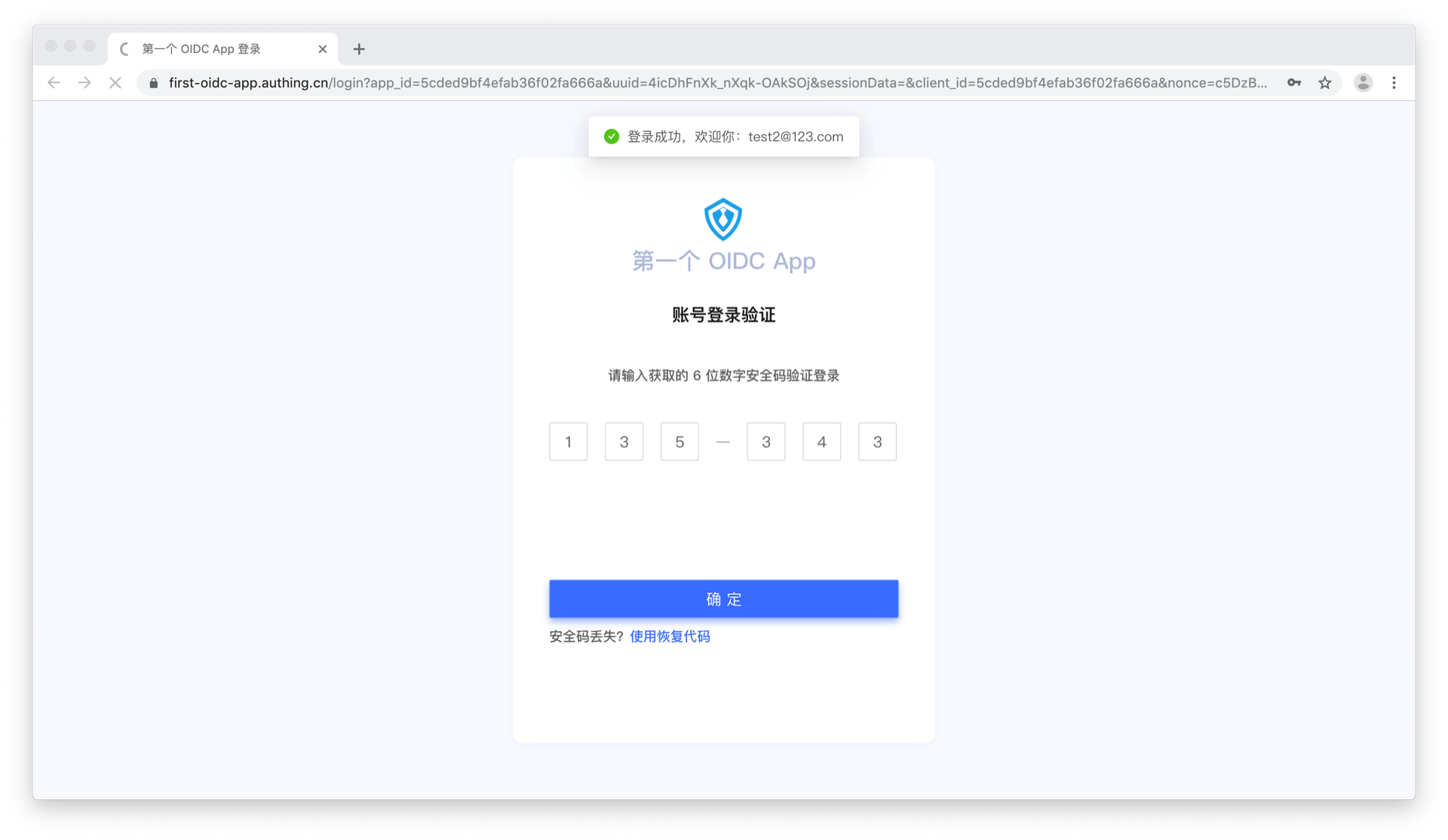

2. Please enter the correct 6-digit password, complete the secondary authentication, and log in.

¶ Remove MFA

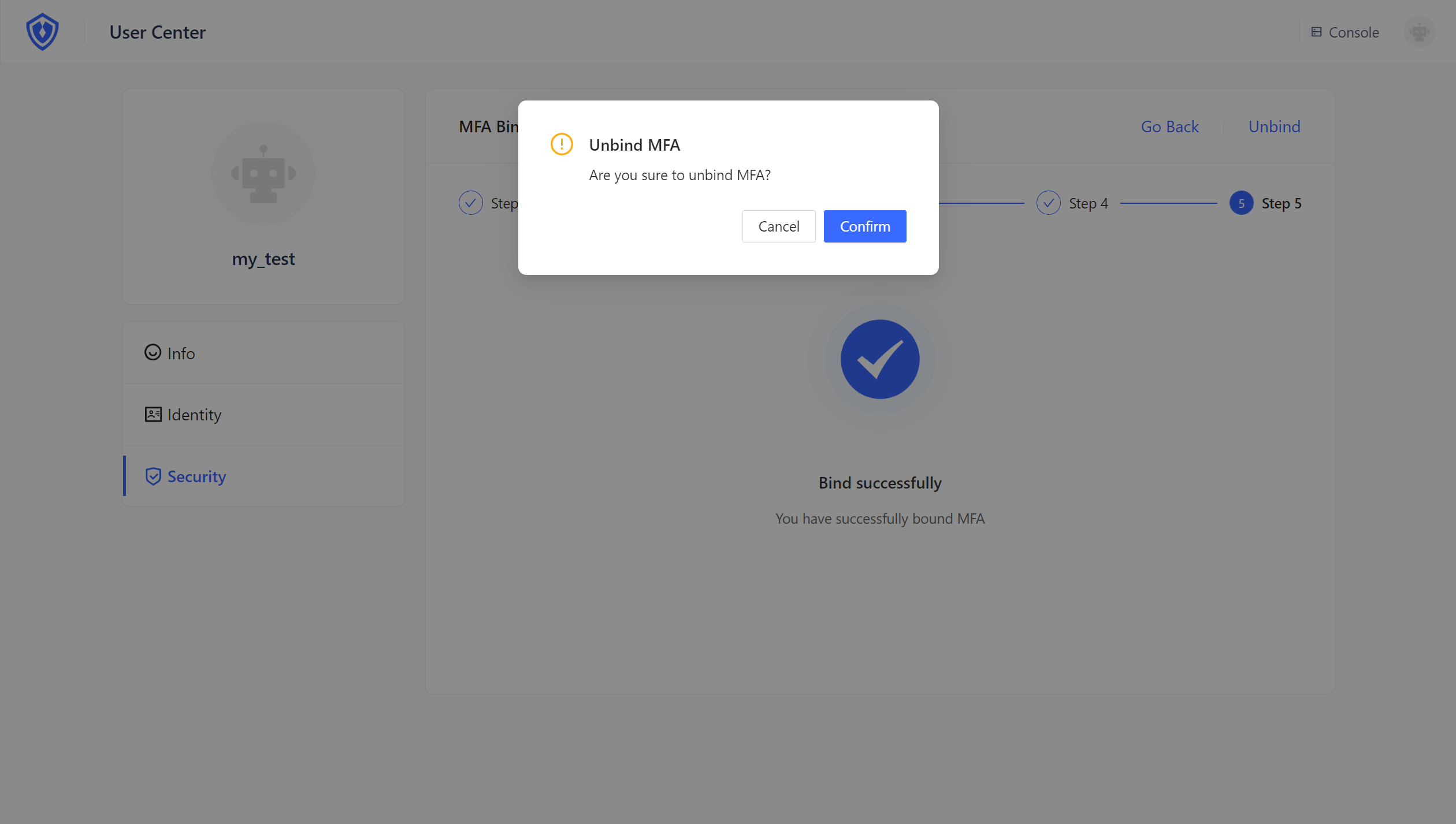

1. Click "Unbind" to remove MFA
