¶ Using Webhook to monitor user events
Webhook allows you to monitor user registration, login and other behaviors, so as to do some custom processing.
The method of using Webhook is to configure the HTTP URL in the Authing platform. When your user logs in, registers, and changes the password, a POST request will be sent to the remote HTTP URL.
¶ Configuring Webhooks

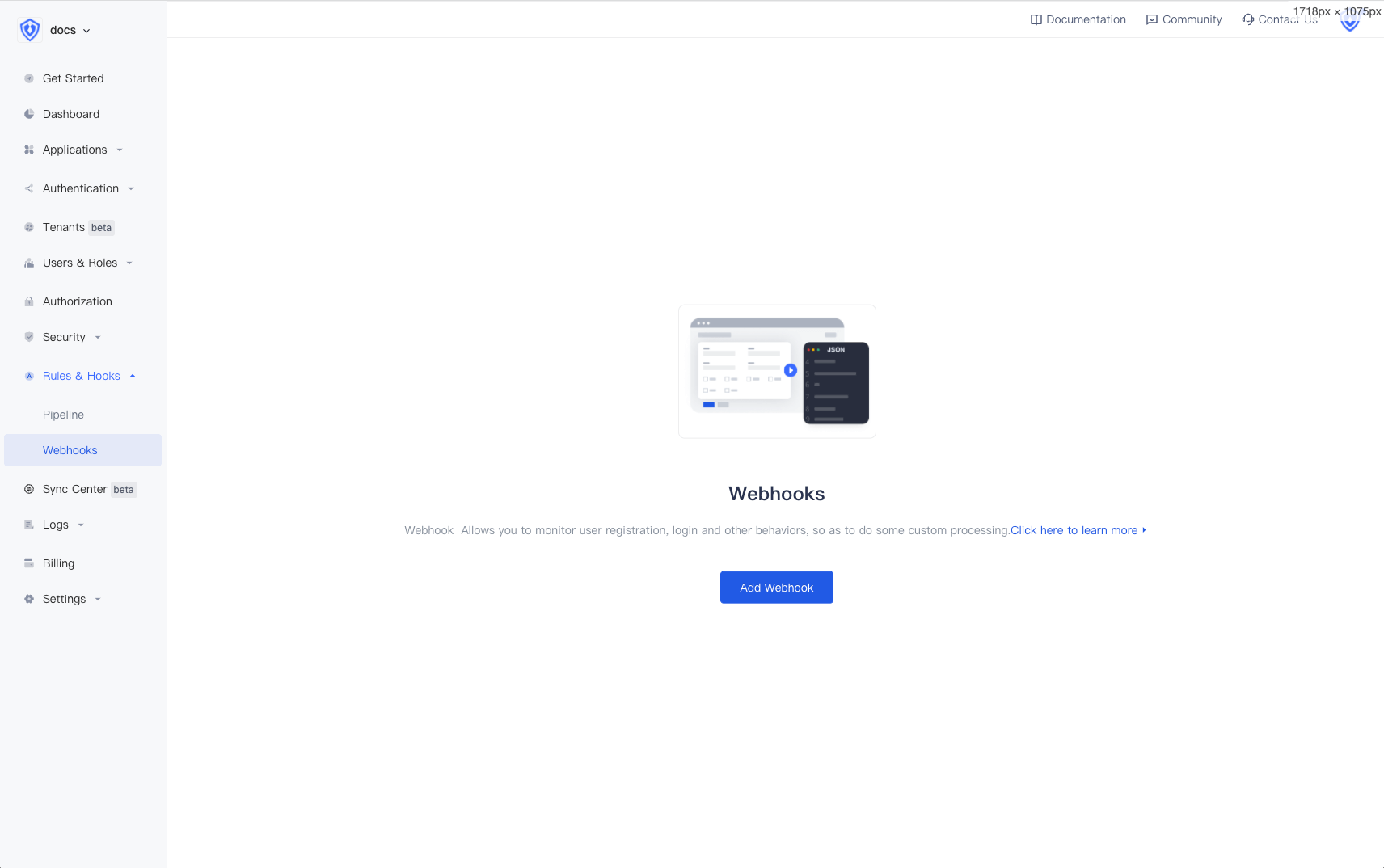

On the Extention Capabilities - Webhooks page,you can manage the webhook you defined:
Click the Add Webhook button to create a new Webhook to subscribe to specific events

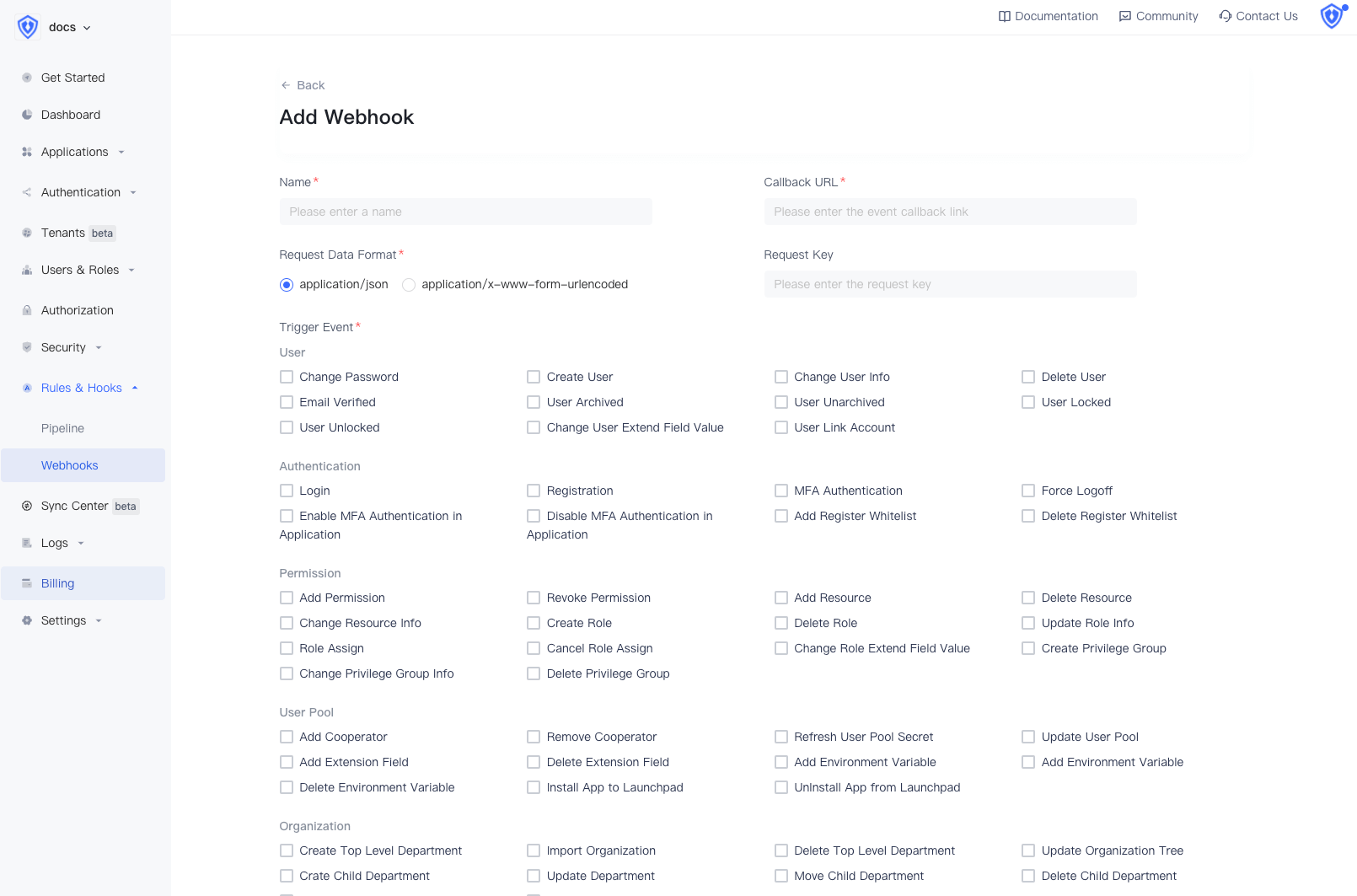

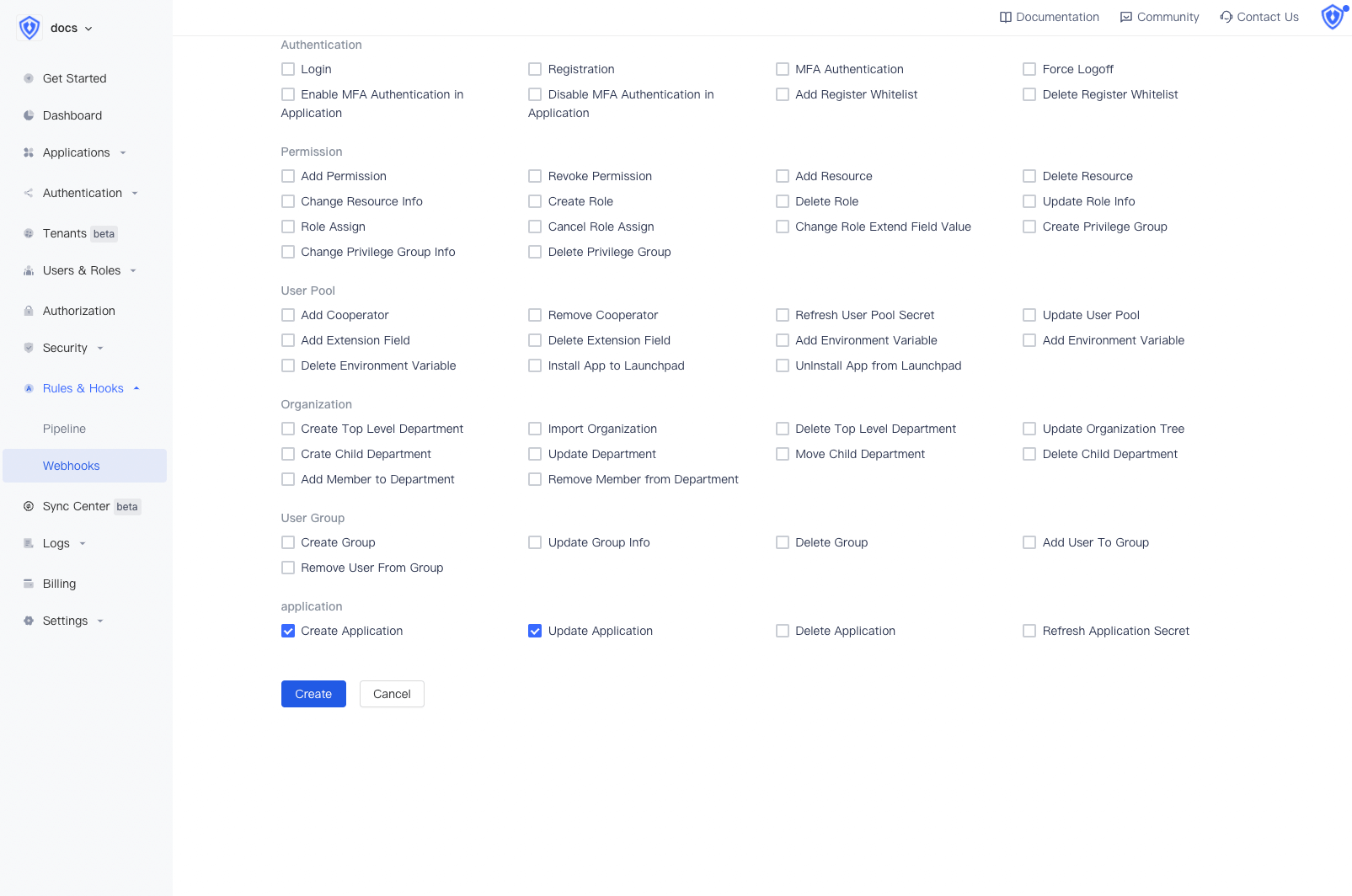

Fill out the form and check the Webhook event
Webhook List
A new Webhook can be created to subscribe to a specific event by clicking on the Create button in the upper right corner:

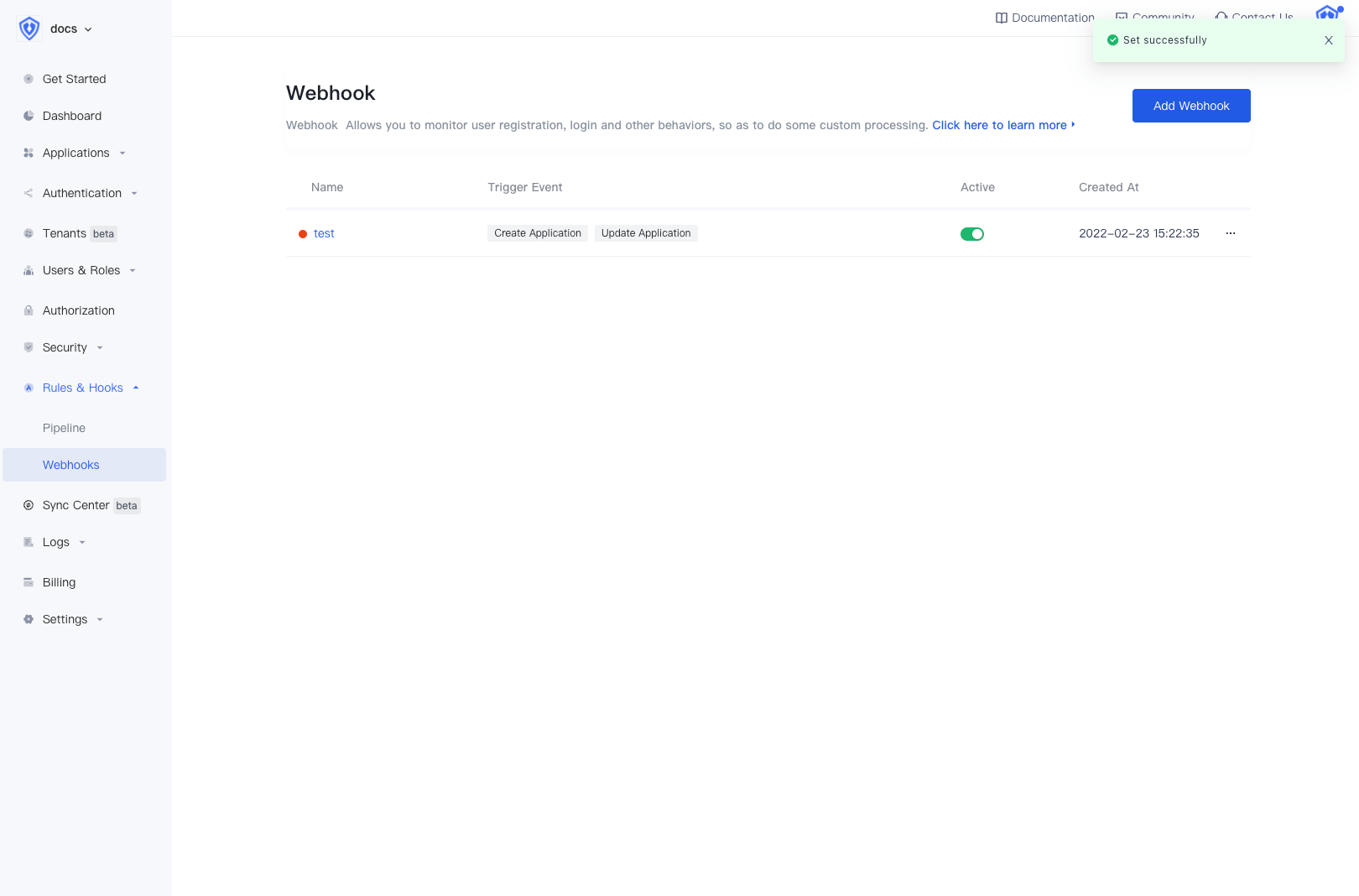

After the creation is successful, you will enter the Webhook list page
Configuring Webhook
¶ Parameter Explanation
Parameter name | Parameter explanation |
---|---|
Name | Webhook name |
Callback link | The HTTP URL address for remotely receiving webhook events |
Request key | After setting the key (the value is set by the developer), Authing will attach this key to each request(HTTP Header:X-Authing-Token). You can verify this key to avoid some illegal operations |
Request data format | Specify the data format of the Request body when initiating a Webhook request. The optional values are application/json and application/x-www-form-urlencoded |
Trigger event | Whether to enable this Hook |
Whether to enable this Hook | Whether to enable this Hook |

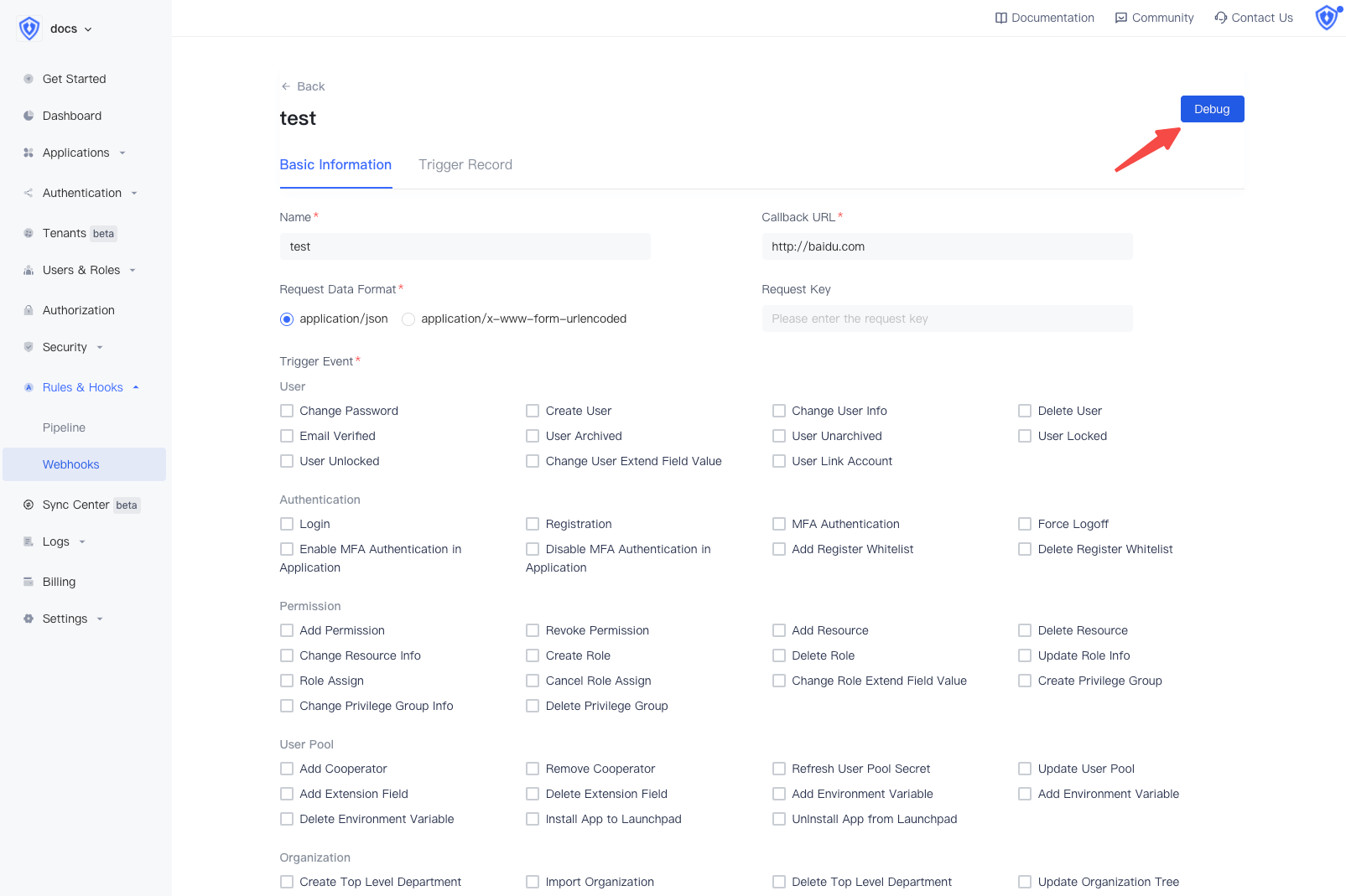

¶ Debugging Webhook

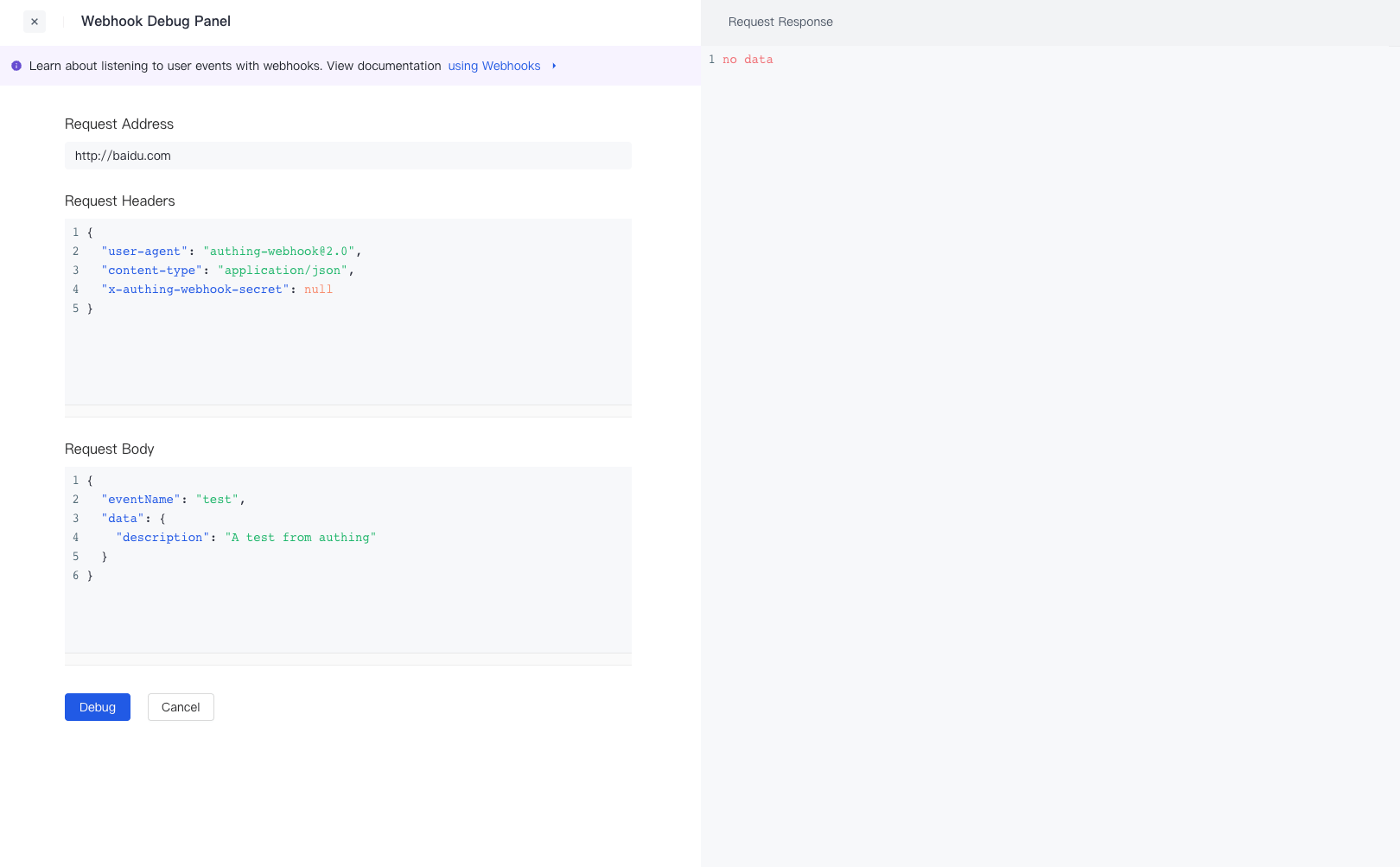

The Hook request events you just created are empty, so you can trigger a "test event" by clicking on "Test".
Webhook test
The requested data
{
"description": "A test from Authing Webhook"
}
After a successful test you will see detailed request and return information.
¶ Supported Events
¶ Event List
Event name | Event description |
---|---|
login | Login event, this event will be triggered when the user logs in, regardless of whether the login is successful or not |
register | Registration event, this event will be triggered when the user registers or the administrator manually creates a user, regardless of whether it is successful or not, it will be triggered |
mfaVerify | MFA verification event, when the user logs in and triggers MFA, and enters the MFA verification code after the second login, it will be triggered regardless of success or failure |
user:updated | Password modification event, this event will be triggered when the user changes the password or the administrator manually changes the password, regardless of success or failure |
user:password-changed | Modify user information time, when users modify their own information or administrators manually modify user information will trigger the word time, regardless of success or failure will be triggered |
user:email-verified | User mailbox is verified event |
permission:add | Add authorization events, authorization objects can be users, roles, and organizational structures |
permission:revoke | Cancel authorization events. Cancel the rule of Authorization objects can be users, roles, and organizational structures |
¶ Request type
Specify the data format of the Request body when initiating a Webhook request. The optional values are application/json
and application/x-www-form-urlencoded
¶ Attached data
Each event will carry some specific request parameters.
¶ Request headers
We will carry some custom header information in the HTTP POST header, as shown in the following table:
Header | 描述 |
---|---|
user-agent | The value is 'authing-webhook@2.0' ,which means this request is from Authing |
x-authing-webhook-secret | The request secret key is the secret key you set in the Webhook configuration. This secret key can be verified to prevent malicious requests from third parties |
x-authing-userpool-id | Authing user pool ID |
¶ Request body
The request body will also carry some specific parameters
Parameter name | Description |
---|---|
eventName | Event name. Possible values are login , register , user:updated ,user:password-changed , user:email-verified |
data | The corresponding details of the event |
¶ Request example
Login event
{ "eventName": "login", "data": { "id": "5f702fcc913544c358cb2123", "arn": "arn:cn:authing:59f86b4832eb28071bdd9214:user:5f702fcc913544c358cb2123", "userPoolId": "59f86b4832eb28071bdd9214", "username": "xxx", "email": null, "emailVerified": false, "phone": null, "phoneVerified": false, "unionid": "35447896", "openid": "35447896", "identities": [], "nickname": "xxxx", "registerSource": ["social:github"], "photo": "https://avatars2.githubusercontent.com/u/35447896?v=4", "password": null, "oauth": "", "token": "", "tokenExpiredAt": "1602484037172", "loginsCount": 4, "lastLogin": "1601188037190", "lastIP": null, "signedUp": "2020-09-27T14:23:08+08:00", "blocked": false, "isDeleted": false, "device": null, "browser": null, "company": "Authing", "name": null, "givenName": null, "familyName": null, "middleName": null, "profile": "", "preferredUsername": null, "website": null, "gender": "U", "birthdate": null, "zoneinfo": null, "locale": null, "address": null, "formatted": null, "streetAddress": null, "locality": null, "region": null, "postalCode": null, "country": null, "createdAt": "2020-09-27T14:23:08+08:00", "updatedAt": "2020-09-27T14:27:17+08:00", "customData": "" } }
Registration Events
{ "eventName": "register", "data": { "id": "5f702fcc913544c358cb2123", "arn": "arn:cn:authing:59f86b4832eb28071bdd9214:user:5f702fcc913544c358cb2123", "userPoolId": "59f86b4832eb28071bdd9214", "username": "xxx", "email": null, "emailVerified": false, "phone": null, "phoneVerified": false, "unionid": "35447896", "openid": "35447896", "identities": [], "nickname": "xxxx", "registerSource": ["social:github"], "photo": "https://avatars2.githubusercontent.com/u/35447896?v=4", "password": null, "oauth": "", "token": "", "tokenExpiredAt": "1602484037172", "loginsCount": 4, "lastLogin": "1601188037190", "lastIP": null, "signedUp": "2020-09-27T14:23:08+08:00", "blocked": false, "isDeleted": false, "device": null, "browser": null, "company": "Authing", "name": null, "givenName": null, "familyName": null, "middleName": null, "profile": "", "preferredUsername": null, "website": null, "gender": "U", "birthdate": null, "zoneinfo": null, "locale": null, "address": null, "formatted": null, "streetAddress": null, "locality": null, "region": null, "postalCode": null, "country": null, "createdAt": "2020-09-27T14:23:08+08:00", "updatedAt": "2020-09-27T14:27:17+08:00", "customData": "" } }
Change Password Event
{ "eventName": "user:password-changed", "data": { "userId": "5f702fcc913544c358cb2123" } }
Modify user information event
{ "eventName": "user:updated", "data": { "user": { "id": "5f702fcc913544c358cb2123", "arn": "arn:cn:authing:59f86b4832eb28071bdd9214:user:5f702fcc913544c358cb2123", "userPoolId": "59f86b4832eb28071bdd9214", "username": "xxx", "email": null, "emailVerified": false, "phone": null, "phoneVerified": false, "unionid": "35447896", "openid": "35447896", "identities": [], "nickname": "xxxx", "registerSource": ["social:github"], "photo": "https://avatars2.githubusercontent.com/u/35447896?v=4", "password": null, "oauth": "", "token": "", "tokenExpiredAt": "1602484037172", "loginsCount": 4, "lastLogin": "1601188037190", "lastIP": null, "signedUp": "2020-09-27T14:23:08+08:00", "blocked": false, "isDeleted": false, "device": null, "browser": null, "company": "Authing", "name": null, "givenName": null, "familyName": null, "middleName": null, "profile": "", "preferredUsername": null, "website": null, "gender": "U", "birthdate": null, "zoneinfo": null, "locale": null, "address": null, "formatted": null, "streetAddress": null, "locality": null, "region": null, "postalCode": null, "country": null, "createdAt": "2020-09-27T14:23:08+08:00", "updatedAt": "2020-09-27T14:27:17+08:00", "customData": "" }, "updates": { "nickname": "xxxx" } } }
User mailbox verification event
{
"eventName": "user:email-verified",
"data": {
"userId": "xxxxx",
"email": "xxxx"
}
}
- MFA verification event
{
"eventName": "mfaVerify",
"data": {
"userId": "xxxxx",
"isValid": true // 是否验证通过
}
}
- Adding authorization event
{
"eventName": "permission:add",
"data": {
"userPoolId": "xxxxx",
"policies": ["xxxx"], // 授权的策略 ID 列表
"targetType": "USER", // 授权对象类型,USER | ROLE | GROUP | ORG
"targetIdentifiers": ["xxxx"], // 授权对象 ID 列表,如 用户 ID
"namespace": "xxxx" // 授权的策略所属的权限组
}
}
- Cancellation of authorization events
{
"eventName": "permission:revoke",
"data": {
"userPoolId": "xxxxx",
"policies": ["xxxx"], // 授权的策略 ID 列表
"targetType": "USER", // 授权对象类型,USER | ROLE | GROUP | ORG
"targetIdentifiers": ["xxxx"], // 授权对象 ID 列表,如 用户 ID
"namespace": "xxxx" // 授权的策略所属的权限组
}
}
