MySQL

MySQL applications allow you to operate MySQL databases in Authing identity automation, including executing queries, inserting data, updating data, and more.

Preparation work

If you have not yet created a MySQL database, please create it first. 2. Automatically configure your MySQL database key in Authoring identity.

Supported operations

  1. Execute query
  2. Insert data
  3. Update data

Basic examples

Firstly, in your MySQL database, create a test table. Here, we create a users user table with three fields:id,name, and email, and insert several test data:

CREATE TABLE `users` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT 'Primary key',
  `name` varchar(64) NOT NULL DEFAULT '' COMMENT 'name',
  `email` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL DEFAULT '' COMMENT 'mailbox',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=72 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='User Table';

INSERT INTO `users` (`id`, `name`, `email`) VALUES
(1, 'Bob', 'bob@example.com'),
(2, 'Lucy', 'lucy@example.com');

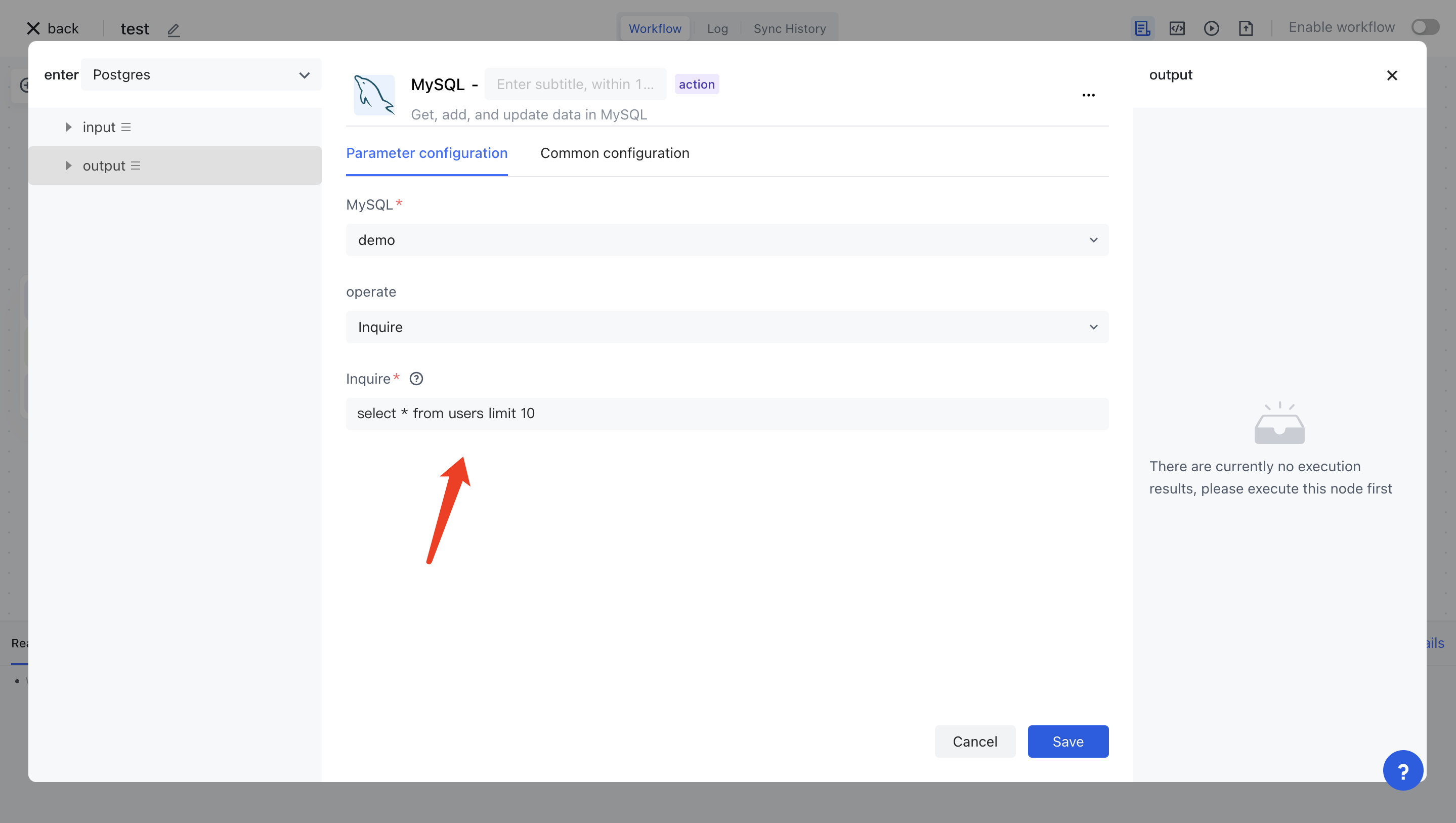

Set the operation of MySQL nodes to execute queries and write in query statements select * from users limit 10：

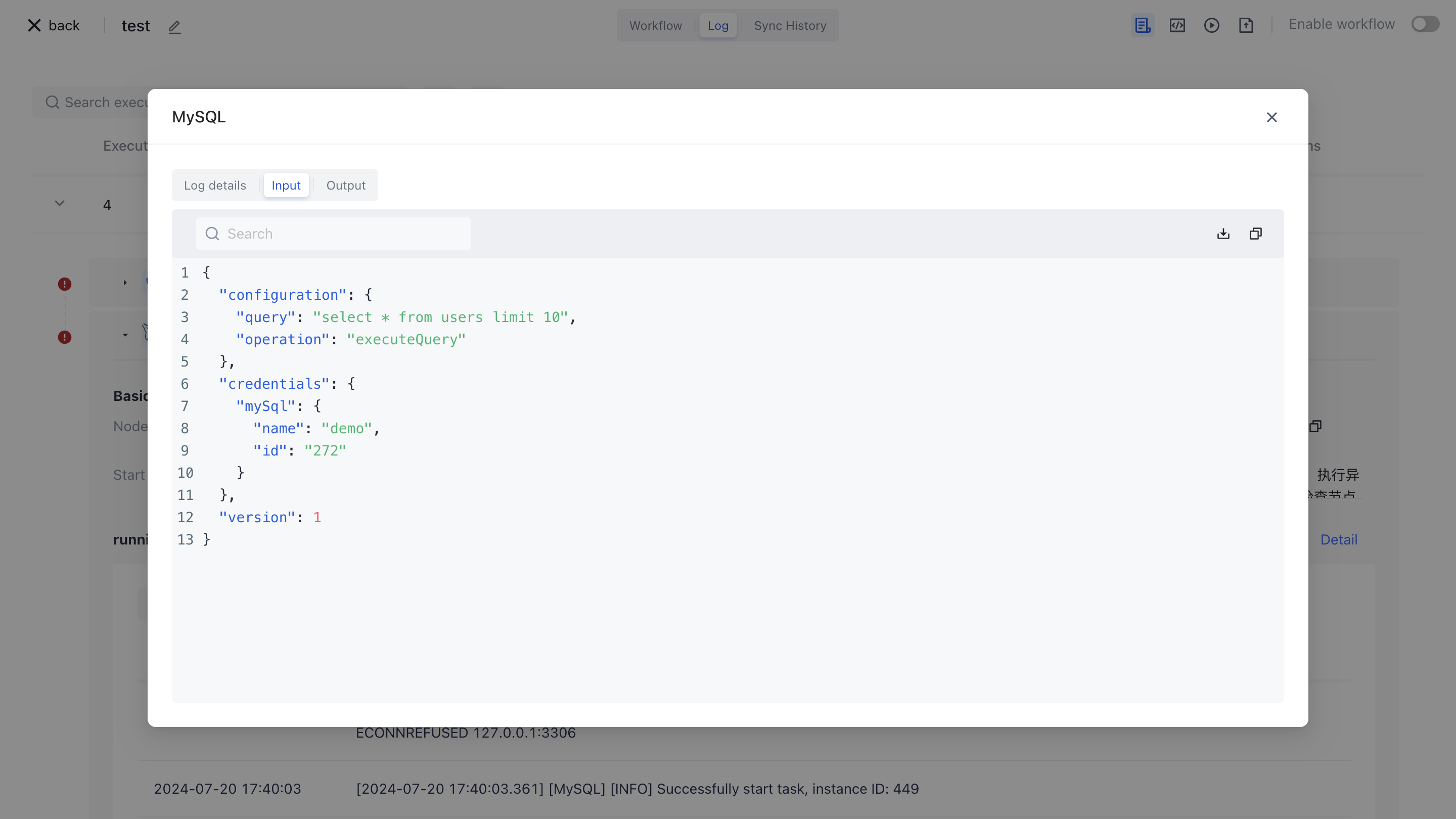

Execution node:
