¶ Spring Security integrated Authing OIDC Start quickly
This article uses Spring Security 5 for certification and access control in Spring ecology as an example, and how to access Authing OIDC
Spring Security is a Security framework for secure access control solutions. It provides a set of Beans that can be configured in the Spring application context, Make full use Spring IOC(Control reverse)、DI(Dependency injection)and AOP(Stem programming)function, for the application system Provide a stateless security access control function,Enhanced Business System security,Reduce write a lot Repeat code burden.
Spring Security main features mainly include:
- Certification
- Authorize
- Attack protection
¶ Integration introduction
Authing OIDC Allow the client to verify the identity of the end user based on the authentication executed by the authorization server. And Interoperable and similar REST the way the basic configuration file information about the end user is obtained. Allow all types of clients (including web-based clients, mobile clients, and JavaScript clients) Request and receive information about authenticated session and end users. The specification kit is scalable, Allow participants to use optional features when they make sense, such as identity data encryption, OpenID provider's discovery and session management.Allows applications and site developers to authenticate users, and does not need to bear the responsibility of storage and management password, Because the Internet is full of people who try to destroy the user account for their own benefits. simple、reliable、Safety,And let them difficulties and dangers from getting rid of storage and managing passwords work. There is an additional benefit is that, and Use the user's registration process easier,Reduce user jump out. Using Authing OIDC Services as a unified entry of the User Certification Center, all places that need to be logged in will be handed over to OIDC services. It is simply that all parts that need to be processed user authentication will be completed to the OIDC Certification Center.
The OIDC service provided by Authing as an example below. Will detail the method of integrating Authing OIDC single sign-on using Spring Security 5
¶ Project construction
¶ Development environment
- development tools: IDEA
- Project Management Tool: Maven
- JDK version:1.8
- Version Control Tool: Git
¶ Use Spring Initializr quick build project

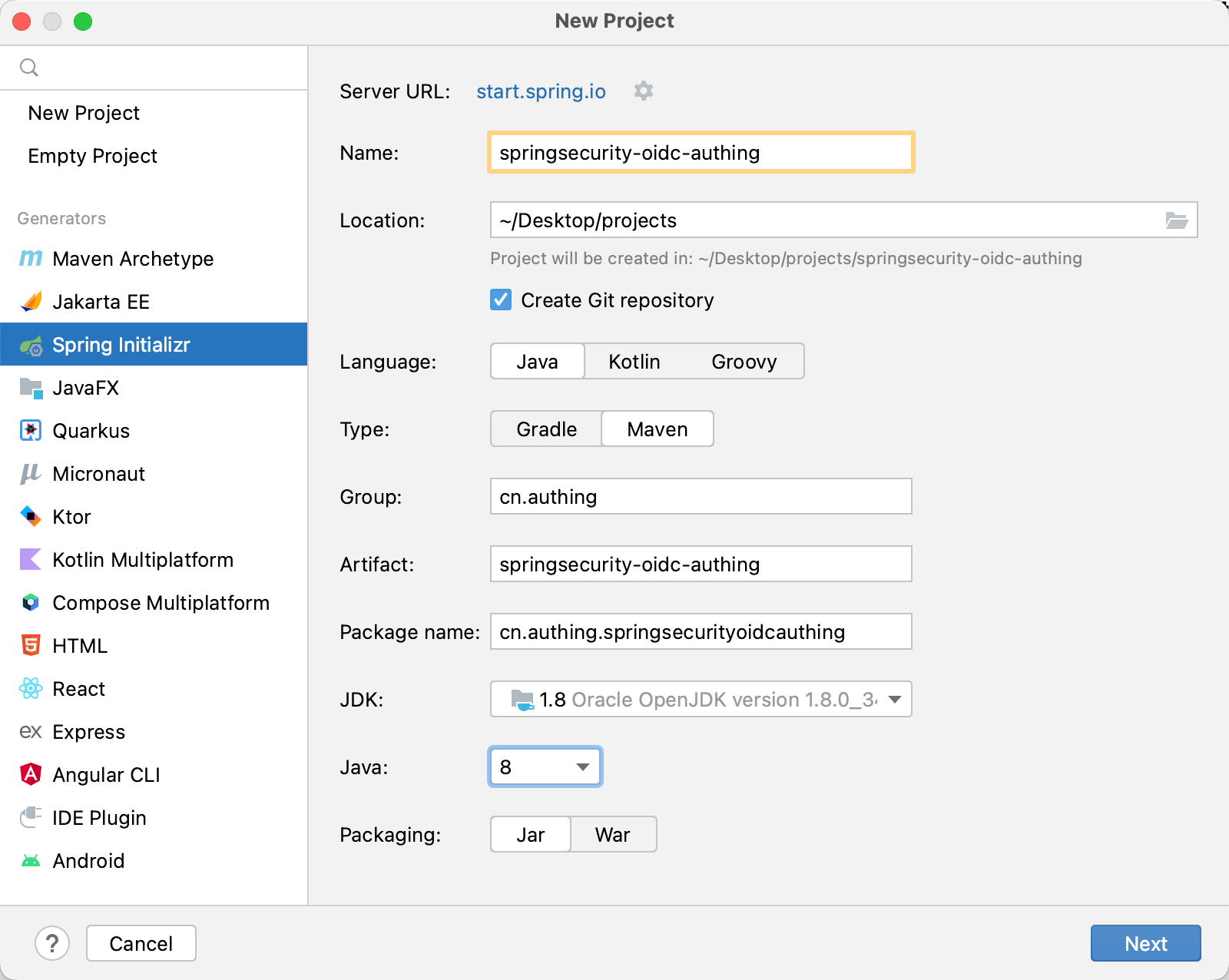

Open IDEA, click New Project to create a new project, select Spring Initializr to create a Spring boot project, enter the project's Group and Artifact Information

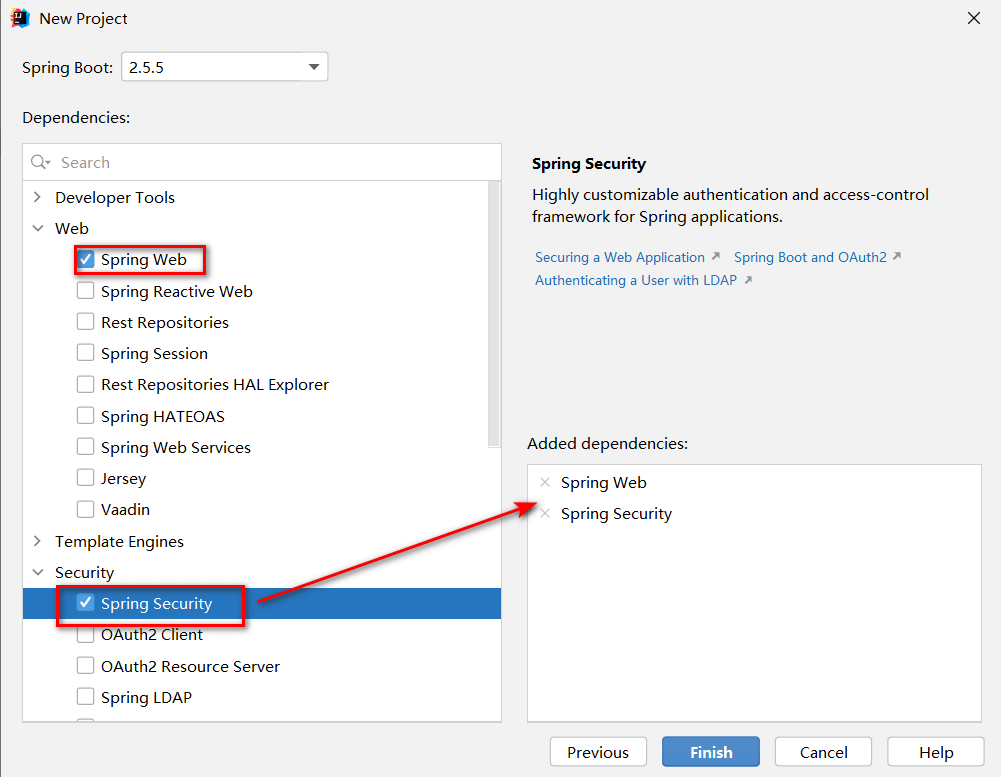

Add Spring Web, Spring Security rely
In addition, some other dependent packages are added to POM.xml during integration, as follows:
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-config</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-jose</artifactId>
</dependency>
¶ Use maven Tool build project

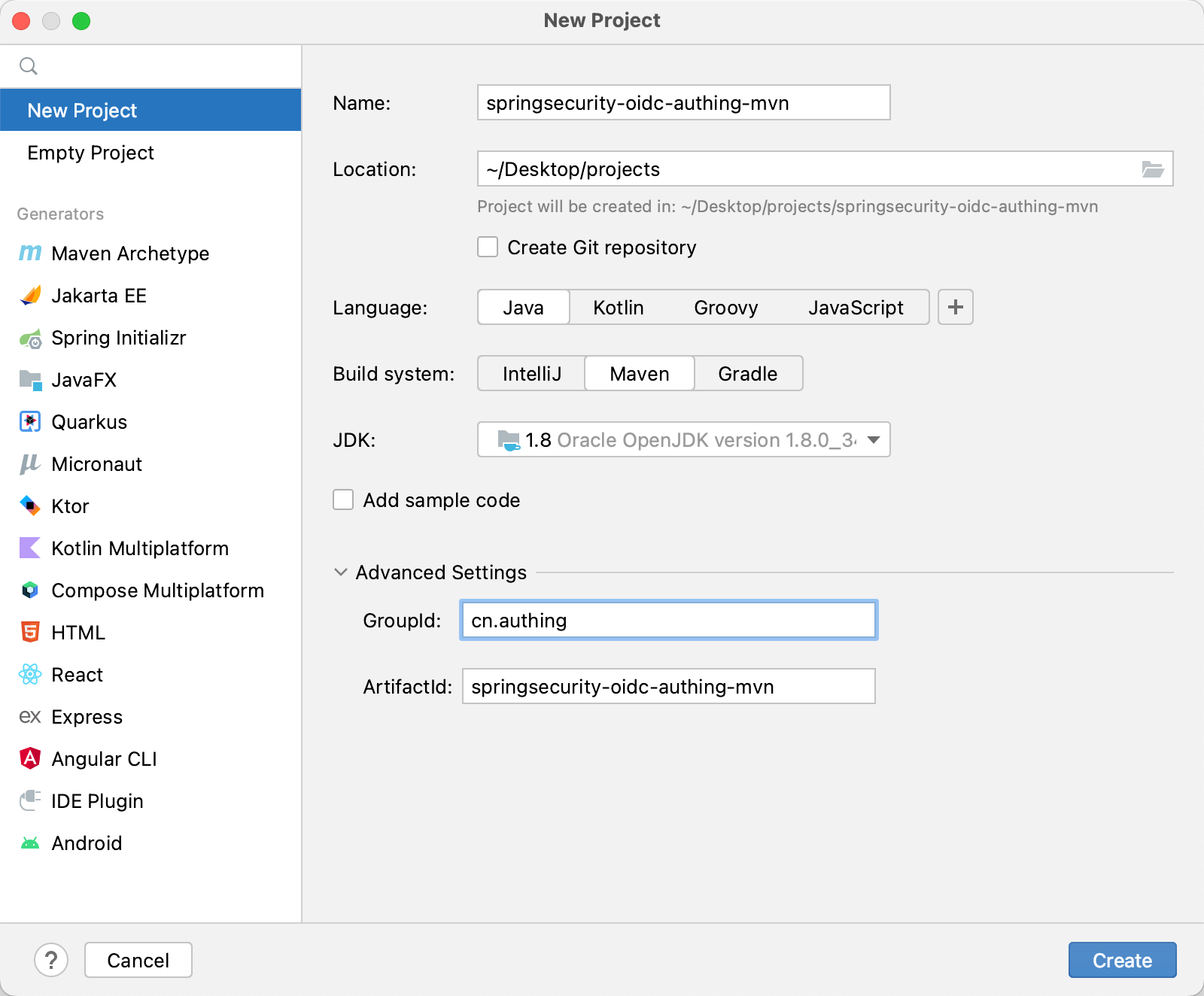

Open IDEA, click New Project to create a new project, select maven to create a maven project, then click Next, fill in the project name, and finally Finish
Next, add other dependent packages that parent engineering dependencies and integration in pom.xml.
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.5.5</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-config</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.security</groupId>
<artifactId>spring-security-oauth2-jose</artifactId>
</dependency>
🎉🎉🎉 At this point, you have completed two ways to use Spring Initializr and maven, please select a way to develop in your project.
¶ Test items
After creating a good project, run the project in IDEA

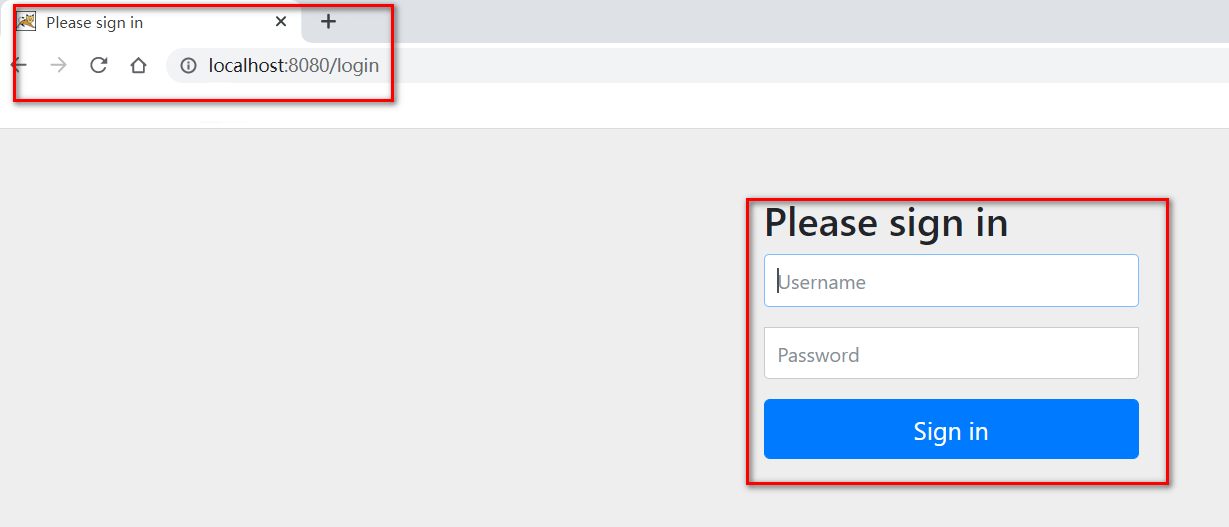

After the project is running, use the browser to access the http://localhost:8080
/login
Route, you can see a base login form on the page, indicating that the project initialization is successful.
¶ Configure Authing
¶ Get an Authing Platform Information
First, you must register an account at Authing and enter the console, and create a user pool according to the boot step.

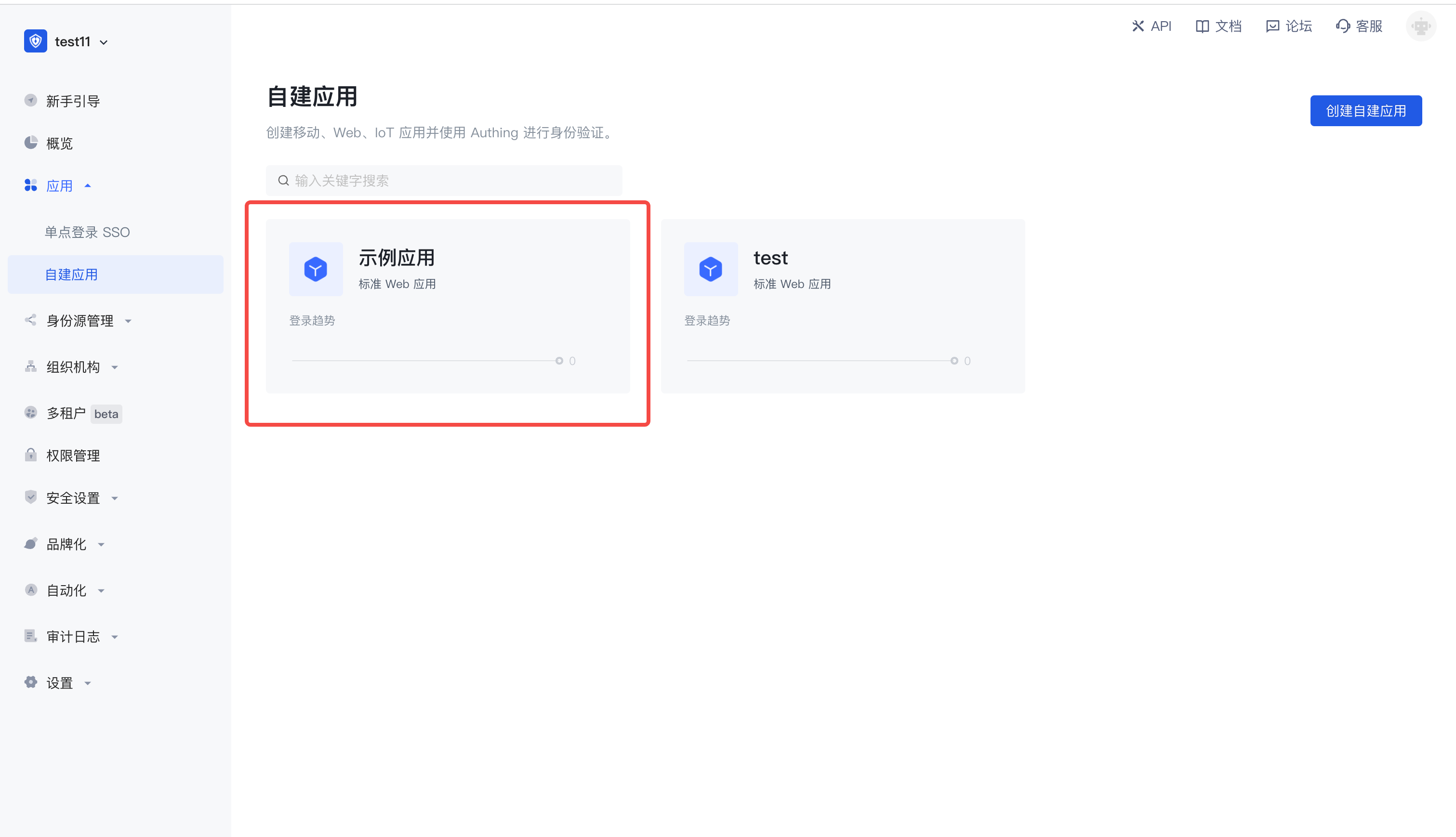

Click on the "Application" menu item on the left, you will see a default creation application on the right.

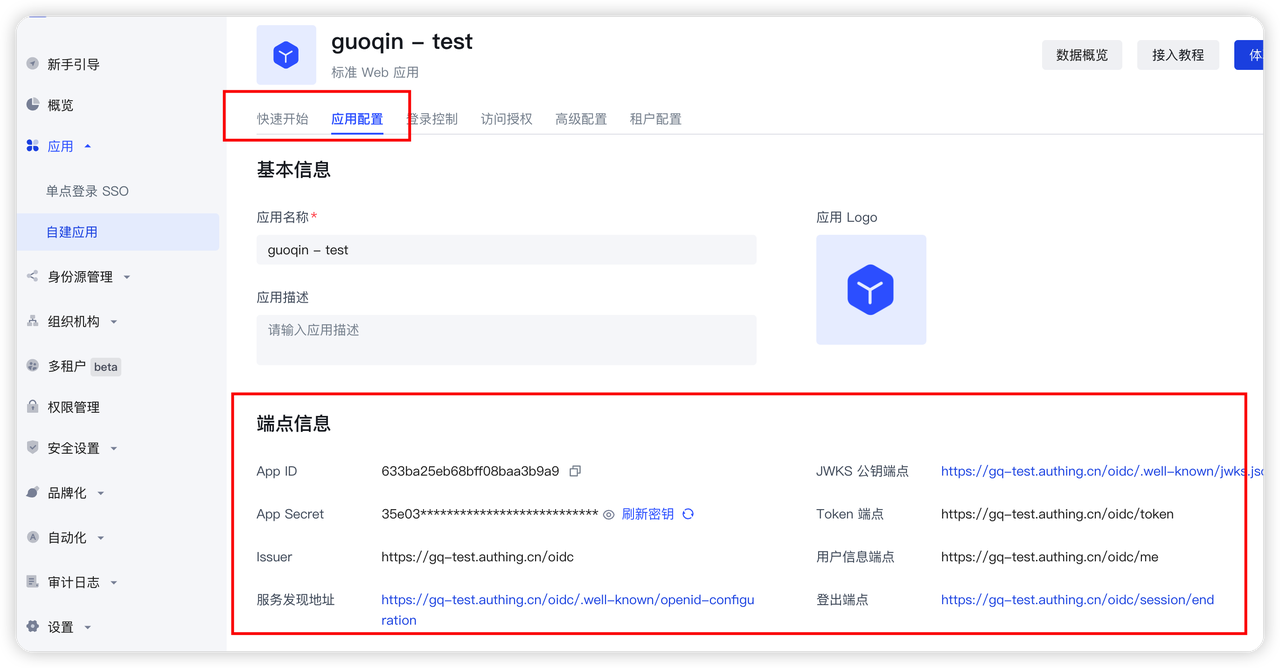

Click "Configuration", see the App ID, App Secret, and Issuer url, please save it properly and then use this information.

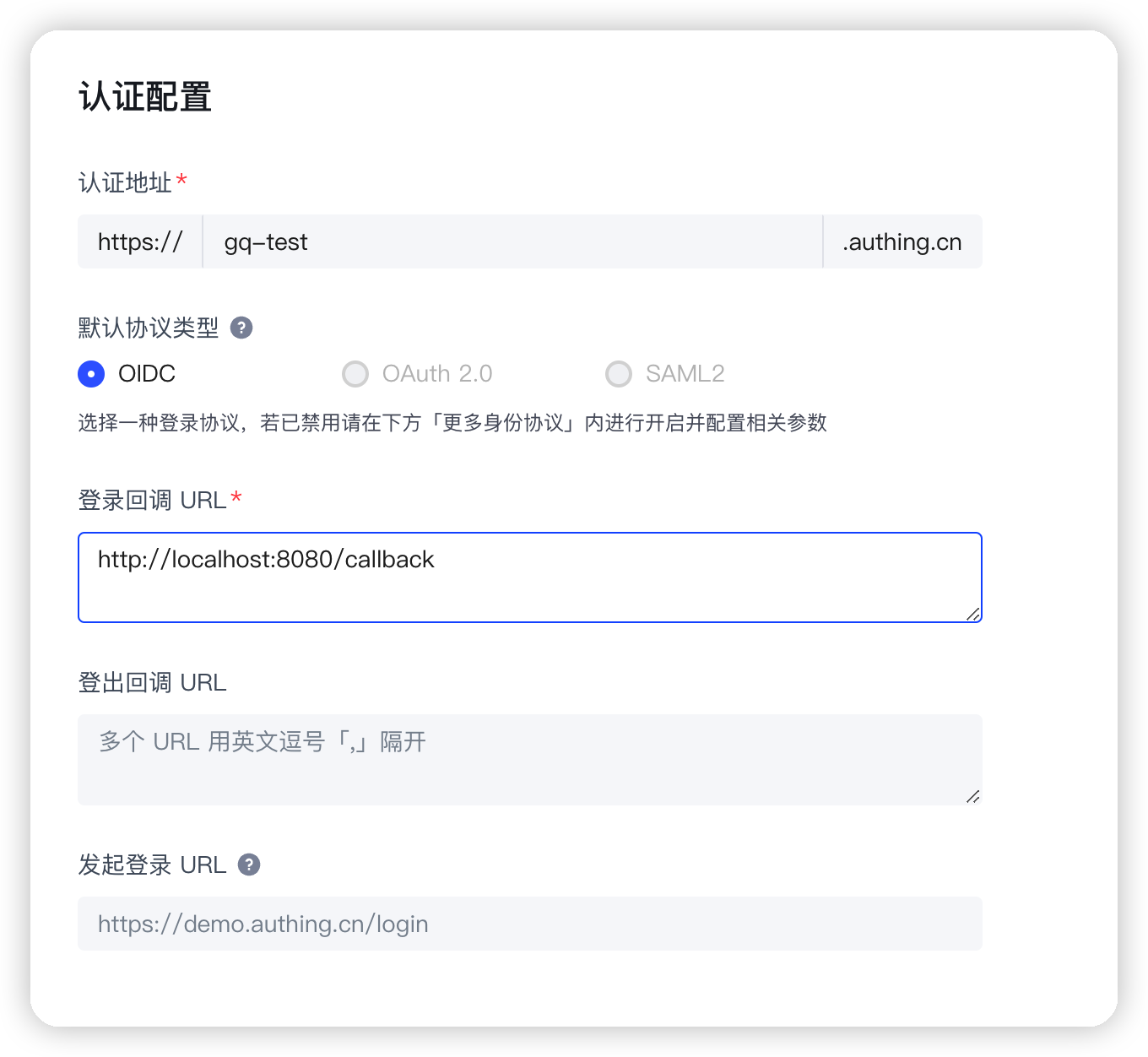

Then you need to add at the callback address http://localhost:8080/login/oauth2/code/authing
subsequent options are consistent with the following figure.

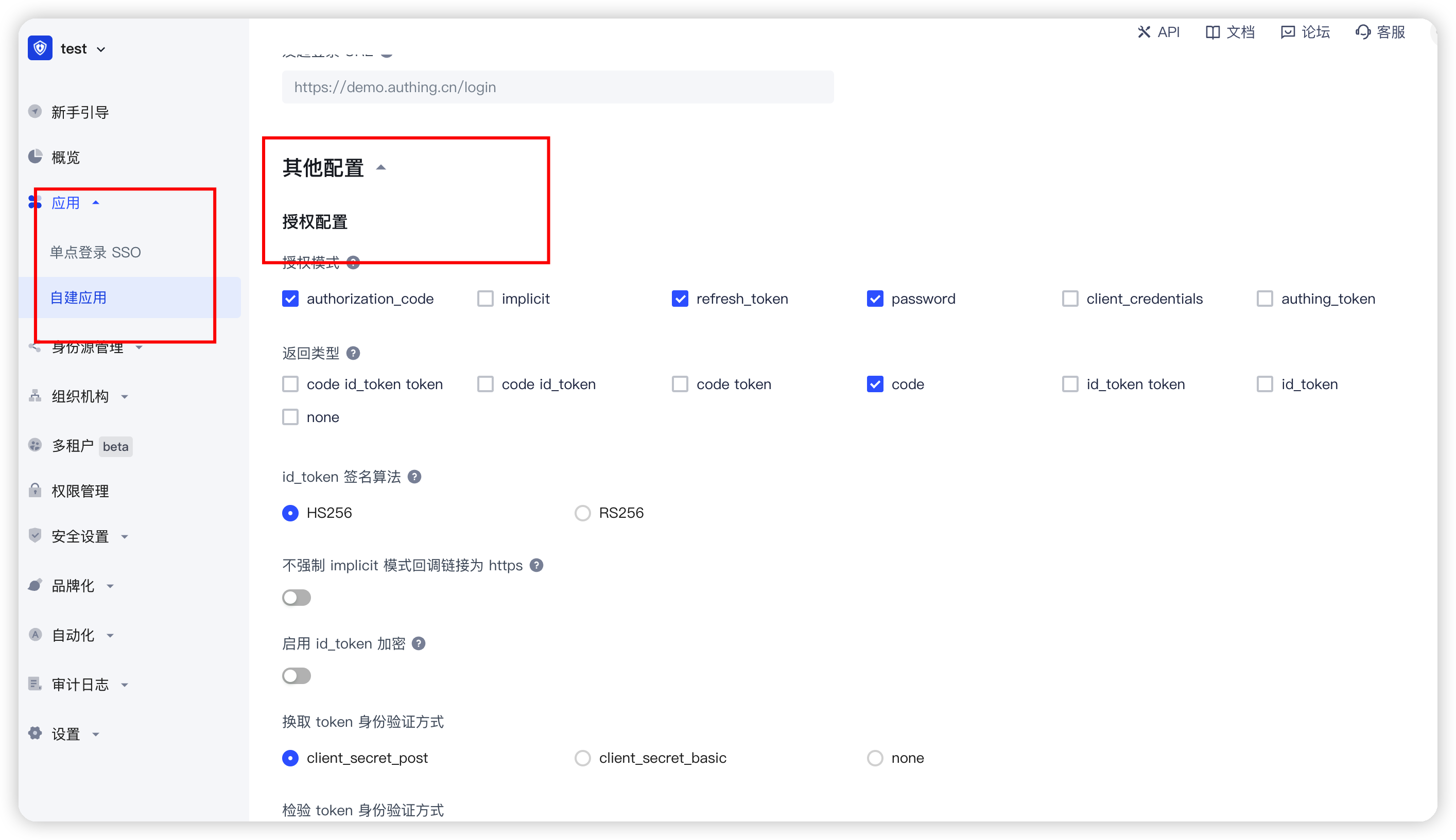

Finally, in the authorization configuration, check the following configuration to ensure the authorization mode and token's security configuration supported by the application.
¶ Configure the configuration file in the project
Find src/main/resources/application.properties
, Rename it as application.yml
, add the following:
spring:
security:
oauth2:
client:
registration:
authing:
client-id: {Replace your App ID such as:App Secret5e72d72e3798fb03e1d57b13}
client-secret: {替换为你的App Secret如:931f19ce2161e5560c072f586c706ee6}
redirect-uri: '{替换为登录的回调地址}'
client-authentication-method: post
scope:
- openid
- profile
provider:
authing:
issuer-uri: https://{Replace your Issuer,such as:authing-net-sdk-demo}.authing.cn/oidc
user-name-attribute: preferred_username
Need to {clientId}、{secret}、{issuerUrl} replace the actual information in the previous application configuration
¶ Run project
Everything is ready, start the project and visit http://localhost:8080

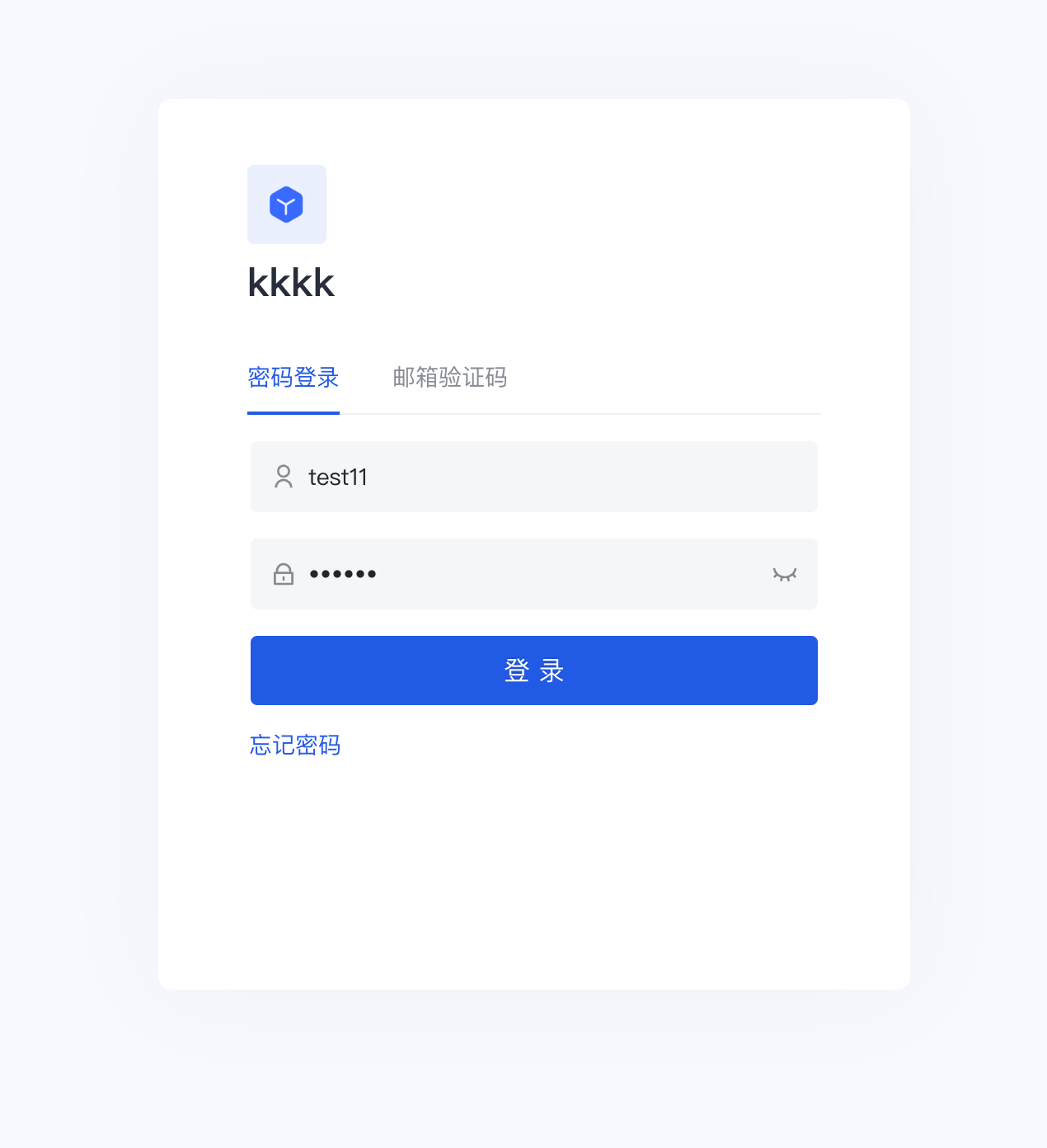

,You can see the Authing login window.
Spring Security defaults to protect the home page, authenticating, and unauthenticated access requests will jump to / login

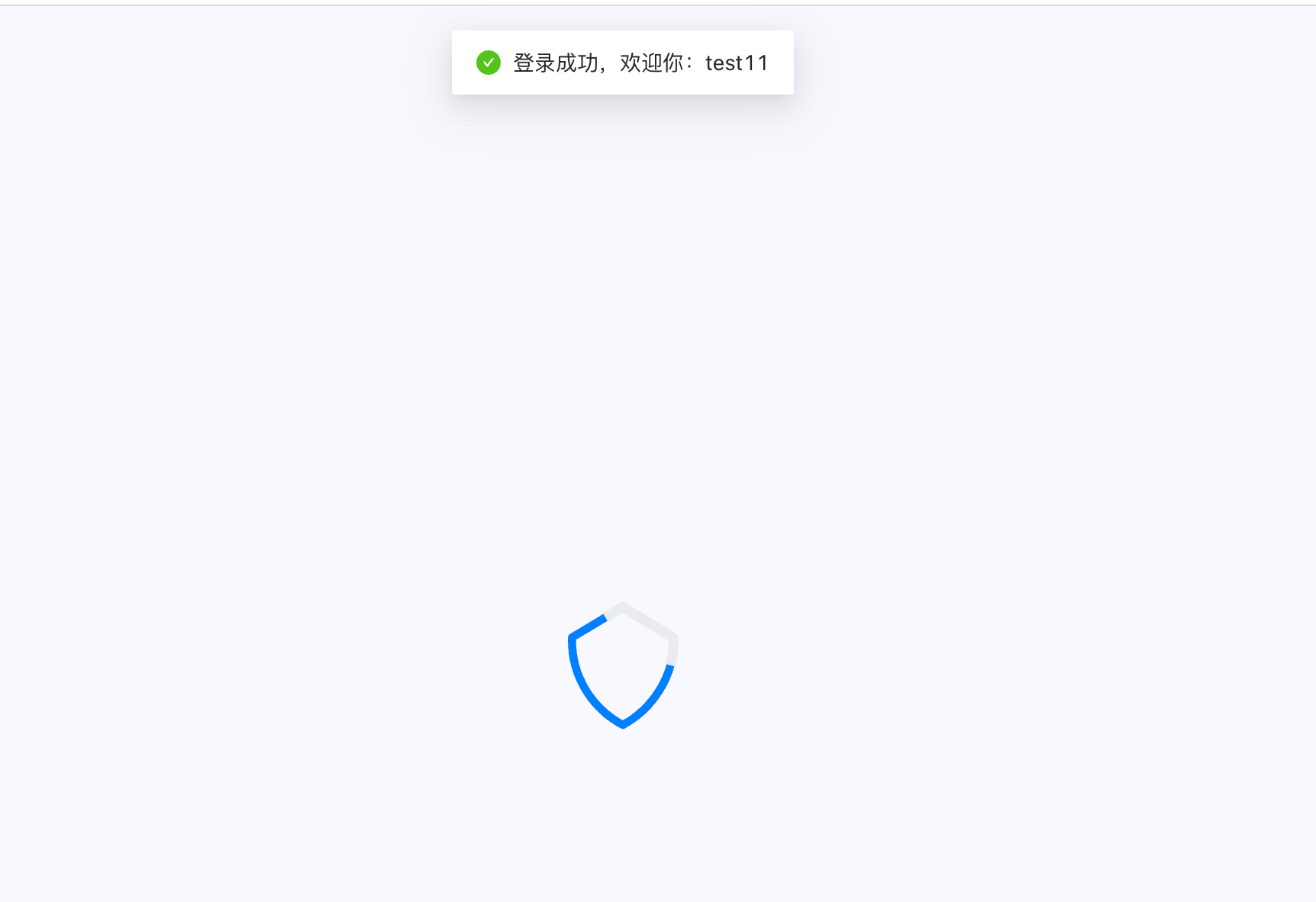

. After registering and logging in, you will jump back to your home page. At this time, you can see the welcome language on the page shows the username of the current login user.
Congratulations 🎉,I have learned here. Spring Security 5 integrated Authing OIDC certified
¶ Other knowledge learning
¶ What is OIDC
Look at the official introduction http://openid.net/connect/ (opens new window)
OpenID Connect 1.0 is a simple identity layer on top of the OAuth 2.0 protocol. It allows Clients to verify the identity of the End-User based on the authentication performed by an Authorization Server, as well as to obtain basic profile information about the End-User in an interoperable and REST-like manner.
OpenID Connect allows clients of all types, including Web-based, mobile, and JavaScript clients, to request and receive information about authenticated sessions and end-users. The specification suite is extensible, allowing participants to use optional features such as encryption of identity data, discovery of OpenID Providers, and session management, when it makes sense for them.

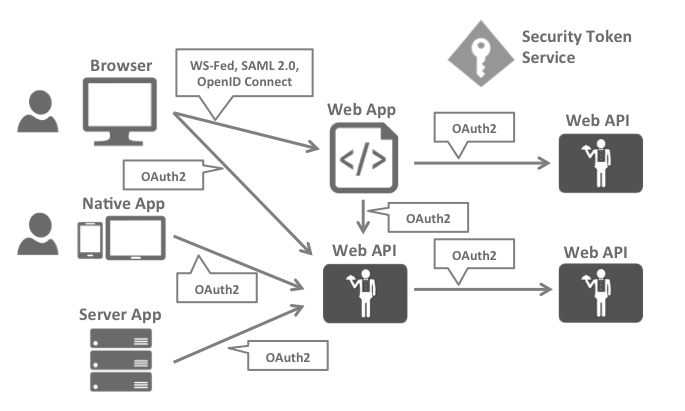

Simply, OIDC is an abbreviation, OIDC = (Identity, Authentication) + OAuth 2.0. It builds an identity layer on OAuth, is a OAuth protocol based identity authentication standard protocol. We all know that OAuth is an authorization agreement that cannot provide a complete identity authentication function. OIDC uses OAuth's authorization server to provide users' authentication for the third-party client, and pass the corresponding identity authentication information to the client, and can Applicable to various types of clients (such as server applications, mobile app, js applications), and completely compatible with OAuth, that is, after you build an OIDC service, you can also be used as an OAuth service. Use. Application scenario, like a picture:
¶ OIDC Protocol
OIDC itself has several specifications, including a core specification, multiple optional support specifications to provide extended support, simple to look at:
- Core:required. Define the core function of OIDC, build an identity authentication above OAuth 2.0, and how to use Claims to deliver users.
- Discovery:Optional. Discover the service to make the client can dynamically obtain Metadata description information related to OIDC services (such as supporting those specification, what is the interface address, etc.).
- Dynamic Registration:Optional. Dynamic registration service allows the client to register the OP's OP (this abbreviation will explain).
- OAuth 2.0 Multiple Response Types:Optional. For OAuth 2.0 extensions, there are several new response_types.
- OAuth 2.0 Form Post Response Mode:Optional. For OAuth 2.0 expansion, OAuth 2.0 return information gives the client two ways of querystring and fragment, which provides a mechanism for the client based on the form of forms.
- Session Management:Optional. Session Management, how to specify how OIDC services manages Session information.
- Front-Channel Logout:Optional. Based on the front-end logout mechanism, the RP (this abbreviation will be explained) may exit without using the iframe of OP.
- Back-Channel Logout:Optional. Based on the rear end logout mechanism defines how RP and OP communicate directly to complete the logout.
¶ OIDC Core idea
OAuth 2.0 provides Access Token to resolve the issue of authorized third-party clients to access protected resources, OIDC provides ID token to solve the problem of third-party client identifying user authentication. The core of OIDC is in the authorization process of OAuth 2.0, and provides users' identity authentication information (ID token) to third-party clients, ID token is packaged in JWT format, thanks to JWT self-inclusive, Compact and tamper-proof mechanism, allows ID Token to be securely passed to third-party client programs and is easily verified. In addition, UserInfo interface is also provided, and the user obtains more complete information.
¶ OIDC Main term
Main terms and concept introductions
- EU:A human user
- RP:RP: used to refer OAuth 2.0 trusted client, identity authentication, and authorized information for the consumption
- OP: Ability to provide EU certified services (such as authorization services in OAuth 2.0), used to provide EU identity authentication information for RP
- ID Token:JWT format data, including EU authentication information
- UserInfo Endpoint:User information interface (protected by OAuth 2.0), returns information of authorized users when RP uses Access token access, this interface must use HTTPS
¶ OIDC work process

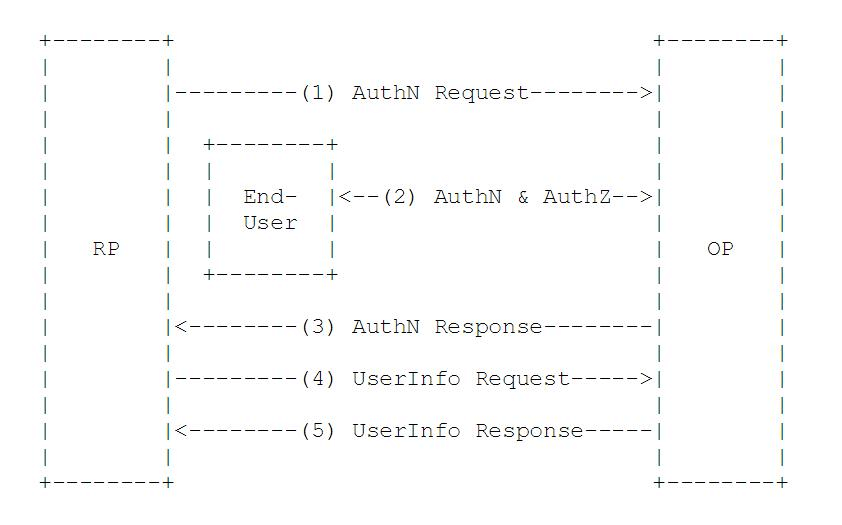

From an abstract point of view, the OIDC process consists of the following five steps:
- RP Send an authentication request to OP
- OP authenticates EU and then provides authorization
- OP returns ID token and Access Token to RP
- RP use Access Token send a request UserInfo EndPoint
- UserInfo EndPoint return EU Claims
