¶ Login by wechat
There are three major steps:
- Configurations on wechat open platform
- Steps at Authing console
- Integrate Authing Android SDK
¶ Configurations on Wechat open platform (opens new window)
Note: Developer must be verified before using any service on wechat open platform. Wechat doesn't support personal usage, so developer must be part of some organization, commercial or governmental. And It costs 300 RMB to become a verified developer.
- Get wechat AppID and AppSecret
- Setup android information
Caution: The MD5 hashing MUST NOT contain any colon.
¶ Steps at Authing console:

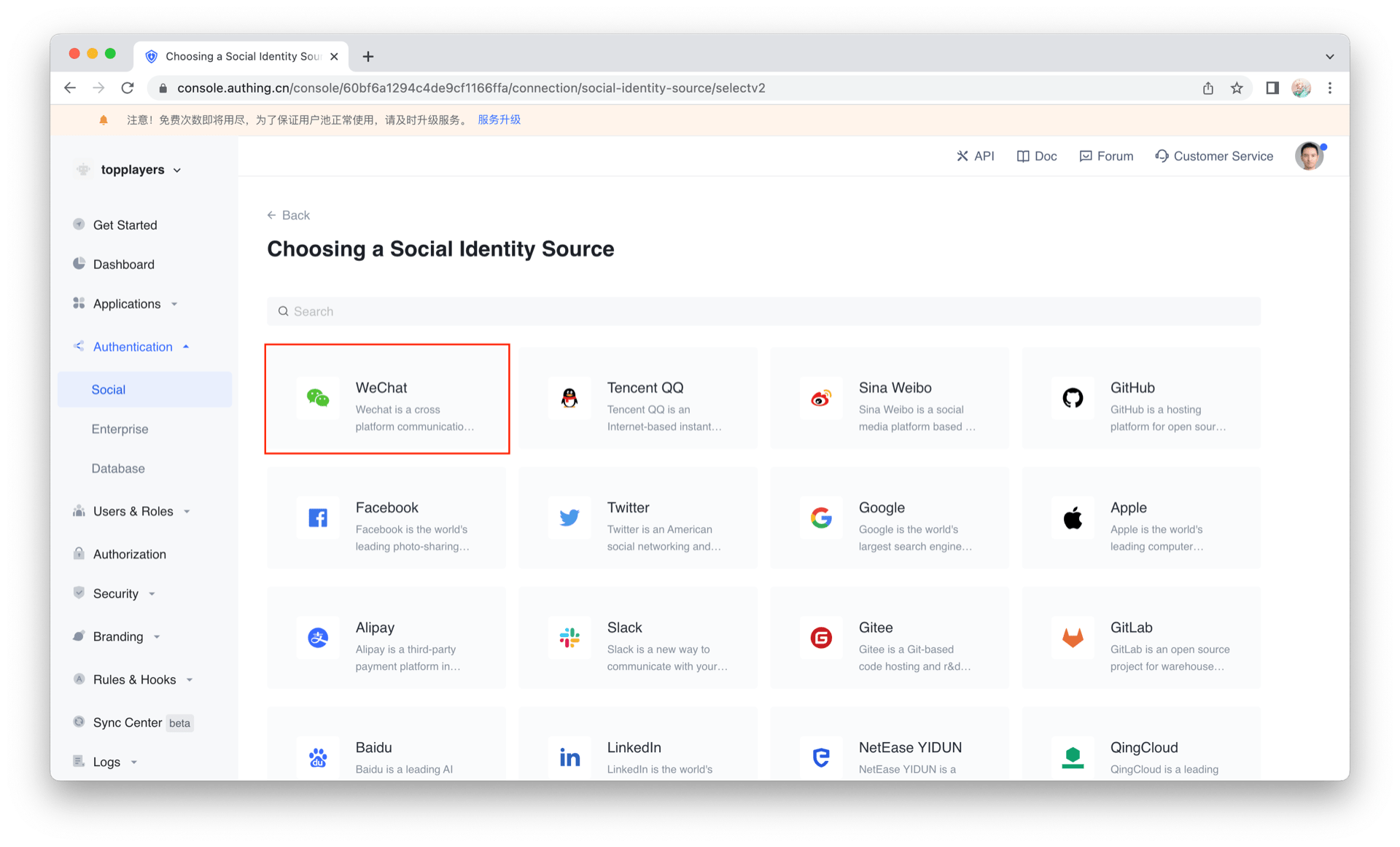

- Click 'Authentication' on the left sidebar and choose 'Social', then click 'Wechat'

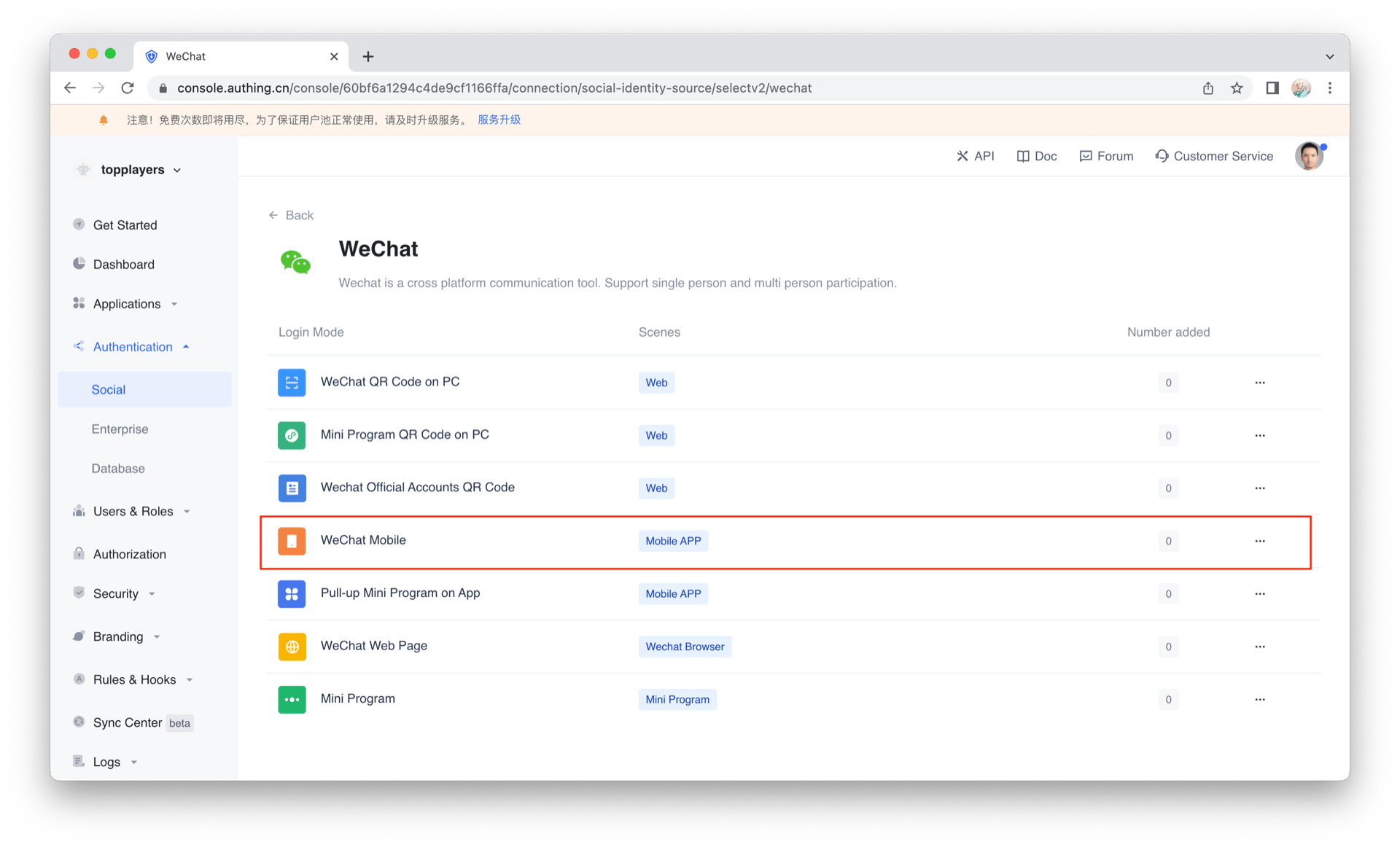

- In the list select 'Wechat Mobile'

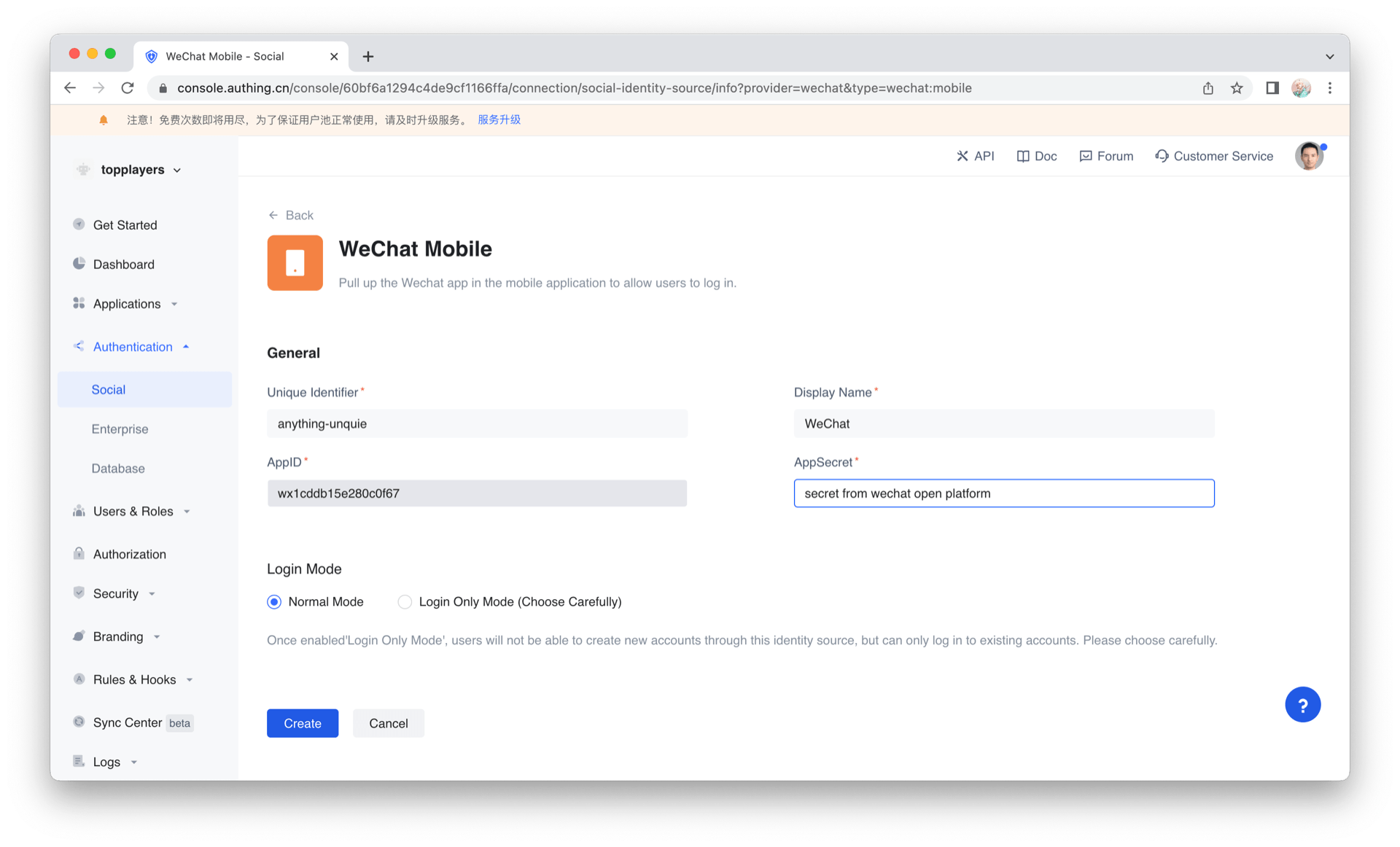

Set an ID for this connection. It can be anything as long as being unique across Authing's connections.
Enter your wechat AppID and AppSecret

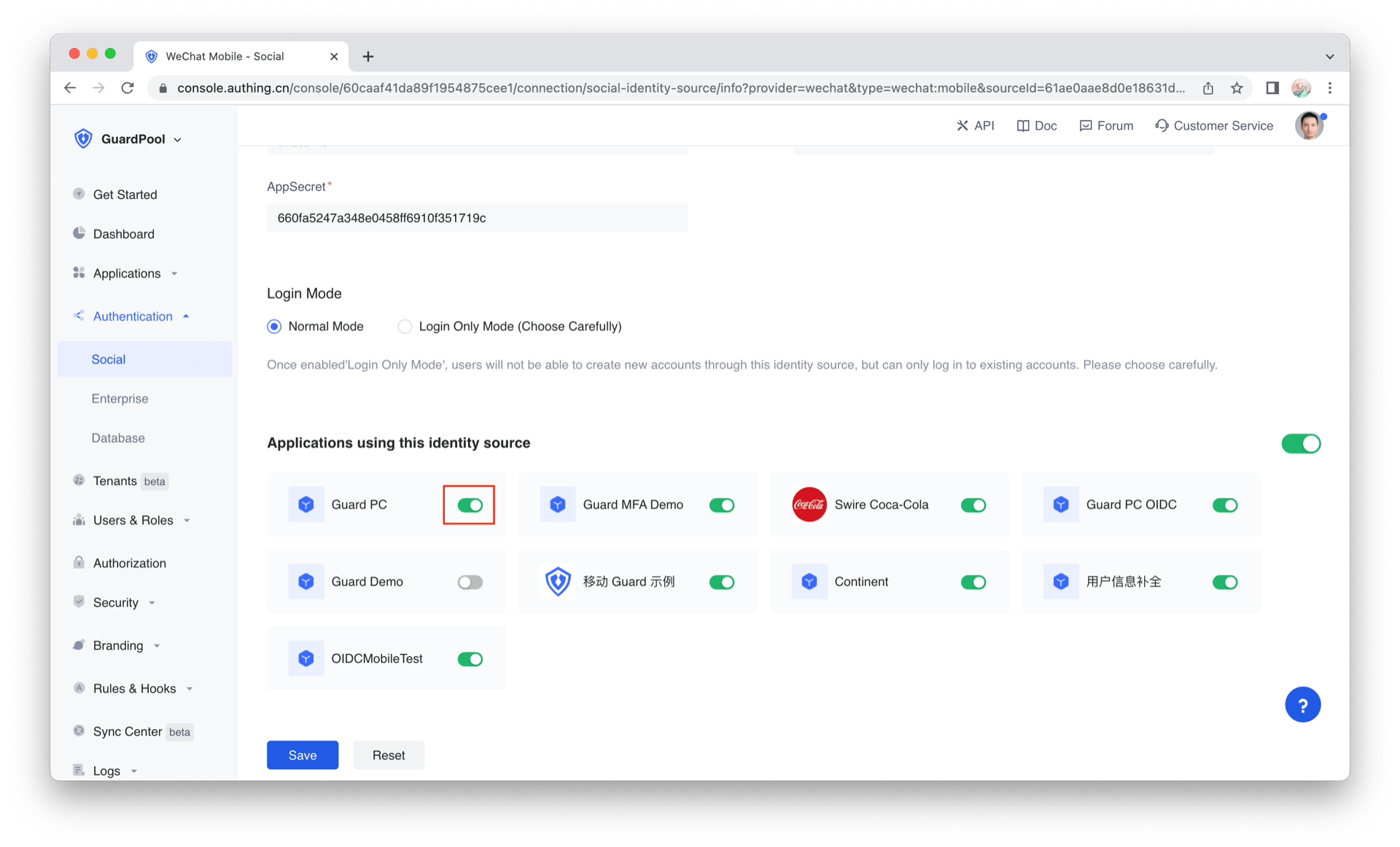

- Hit 'Create'. By default, there is no authing app associate with this connection. You can associate apps with this connection by turning on those switches.
- Hit 'Save' and we are all set
¶ Integrate Android SDK
- Add dependency:
implementation 'cn.authing:guard:+'
implementation 'com.tencent.mm.opensdk:wechat-sdk-android:6.8.0'
- Init Authing upon App startup. e.g. Application's onCreate:
// AUTHING_APP_ID is Authing app id which can be obtained at Authing console
Authing.init(context, “AUTHING_APP_ID”);
Authing.setAuthProtocol(Authing.AuthProtocol.EOIDC)
- According to wechat rules, developer MUST create an Activity called WXEntryActivity and it MUST be put under a package call 'wxapi' and further more, the 'wxapi' package MUST be under your application's package directly. Here is an example, suppose your android application package is:
com.example.myapp
Then you need to create WXEntryActivity like this:
Good news is that the content of this WXEntryActivity is really simple, since we already did the heavy lifting, all you need to do is to extend our Activity, like this:
package com.example.myapp.wxapi;
import cn.authing.guard.social.callback.wechat.WXCallbackActivity;
public class WXEntryActivity extends WXCallbackActivity {
}
- We need to declare this Activity in Manifest
Add the exported
, taskAffinity
and launchMode
attributes to the manifest file with exported
set to true
and taskAffinity
set to the name of your package, launchMode
is set to singleTask
, such as:
<activity
android:name=".wxapi.WXEntryActivity"
android:exported="true"
android:taskAffinity="package nmae"
android:launchMode="singleTask"/>
Precautions
If you need to obfuscate code, add the following configuration to proguard.cfg to ensure proper use of the sdk:
-keep class com.tencent.mm.opensdk.** {
*;
}
-keep class com.tencent.wxop.** {
*;
}
-keep class com.tencent.mm.sdk.** {
*;
}
Next, we recommend to use our UI component, all you need to do is 'place' it on the layout xml where you think appropriate, you can also create an instance of this component via code
<cn.authing.guard.social.view.WechatLoginButton
android:id="@+id/btn_wechat_login"
android:layout_width="44dp"
android:layout_height="44dp"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"/>
Then handle callback event after wechat login:
WechatLoginButton wechatLoginButton = findViewById(R.id.btn_wechat_login);
wechatLoginButton.setOnLoginListener(new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// login success, data is user info
} else {
// login fail
}
}
});
In case you don't want to use our UI component, you can have your own Button, and then inside your Button's onClick event, you can start wechat authentication and handle callback event like this:
Wechat wechat = new Wechat();
wechat.login(appContext, context, new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// login successfully, data is user info.
} else if (code == 1640) {
// Only an existing account can be bound
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 1641) {
// Allows you to bind existing accounts or create new accounts
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 2921) {
// Select multiple accounts and bind them
// data.getSocialBindData() return accounts(account list) and key(intermediate state key)
} else {
//login failure
}
}
});
userInfo
contains idToken
and user information (username
, nickname
, name
, etc.).
If you want to obtain only wechat authorization code:
Wechat wechat = new Wechat();
wechat.getAuthCode(this, new AuthCallback<String>() {
@Override
public void call(int code, String message, String authCode) {
if (code == 200) {
// successfully,authCode is wechat authorization code
}
}
});
If you want to achieve wechat login completely by yourself, after getting the authorization code
, you can call the following API in exchange for user information like this:
public static void loginByWechatWithBind(String authCode, String context, @NotNull AuthCallback<UserInfo> callback)
param
authCode
wechat authorization code.context
Request context,where thecontext
is available in pipeline context.
sample
If all you need is access to user information (username
, nickname
, name
, etc.) and idToken
,call like this:
AuthClient.loginByWechatWithBind(authCode, context, new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// login success, data is user info, contains idToken.
} else if (code == 1640) {
// Only an existing account can be bound
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 1641) {
// Allows you to bind existing accounts or create new accounts
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 2921) {
// Select multiple accounts and bind them
// data.getSocialBindData() return accounts(account list) and key(intermediate state key)
} else {
//login failure
}
}
});
If you need to get user information (username
, nickname
, name
, etc.) , idToken
, accessToken
and refreshToken
, call like this:
OIDCClient oidcClient = new OIDCClient();
oidcClient.loginByWechatWithBind(authCode, context, new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// login success, data is user info, contains idToken、accessToken and refreshToken.
} else if (code == 1640) {
// Only an existing account can be bound
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 1641) {
// Allows you to bind existing accounts or create new accounts
// data.getSocialBindData() return methods(login method) and key(intermediate state key)
} else if (code == 2921) {
// Select multiple accounts and bind them
// data.getSocialBindData() return accounts(account list) and key(intermediate state key)
} else {
//login failure
}
}
});
errorCode
1640
Only an existing account can be bound.1641
Allows you to bind existing accounts or create new accounts.2921
Select and bind multiple accounts after inquiry.602
An error was returned when requesting the third-party endpoint. Please check whether the configuration of wechat mobile identity sourceappSecret
is correct on the console.422
The external identity source connection type does not match and the identity source type is incorrect.501
This identity source connection does not support inquiry binding, and the "Bind to Existing Account" association mode is not enabled.403
Login mode is not allowed, please check the mobile identity source configuration in the console.499
The app doesn't exist!404
The user group does not exist and the user has no permission to log in. If no user information is available during authentication, a new user and identity are created and login only mode is enabled.403
If you do not have permission to log in, contact the administrator.
¶ Bind to Existing Account Apis
If you want to ask whether to bind an existing account when you log in with your wechat account, you can enable the query binding function in Authing Console (opens new window),

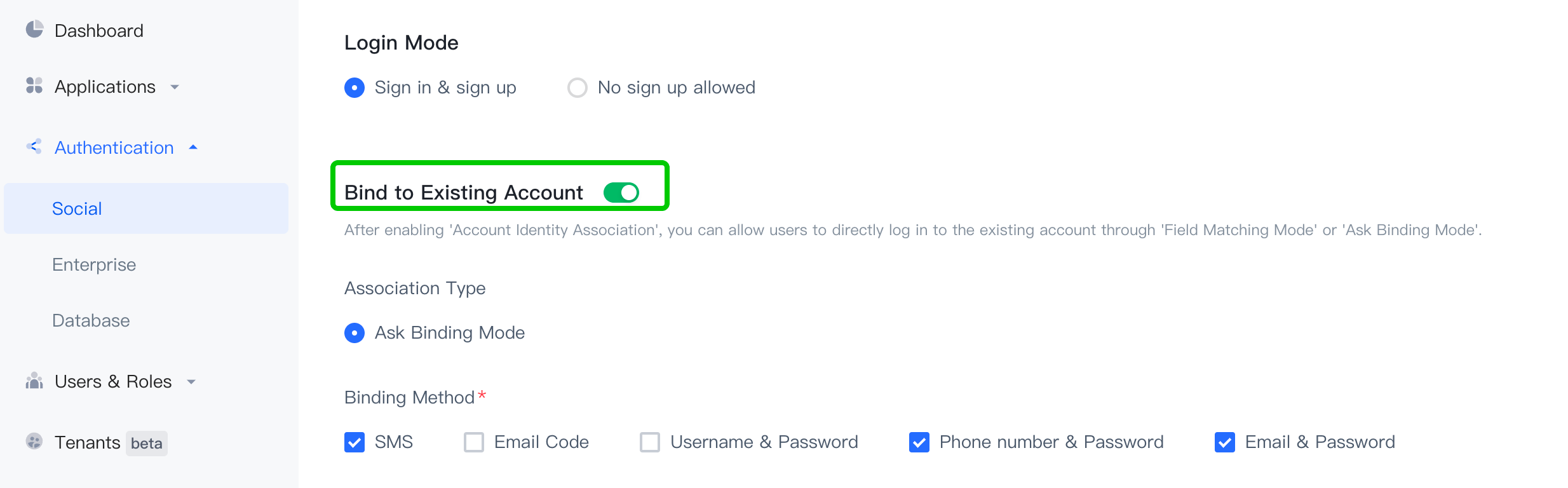

Authentication -> Social -> WeChat -> WeChat Mobile -> Bind to Existing Account:
If using our AuthFlow hosting page, after opening the Bind to Existing Account, relevant business processes are processed in the hosting page.
If you have selected the Login Mode and enabled the Bind to Existing Account function, use the following API to build the subsequent business process:
¶ Creating an Account
If Login Mode is selected for Sign in & sign up and Bind to Existing Account is enabled, the loginByWechatWithBind
interface will return 1641
status code and key
. At this time, the Creating an Account interface can be called to directly create an account.
public static void bindWechatWithRegister(String key, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.
sample
AuthClient.bindWechatWithRegister("key", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
¶ Bind by account password
If Login Mode is selected,the loginByWechatWithBind
interface will return 1640
or1641
status code, supported binding modes and key
,If the supported binding modes include username-password
, phone-password
, and email-password,
you can invoke Bind by account password interface.
public static void bindWechatByAccount(String key, String account, String password, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.account
Account (Authing user: User name, mobile number, and email address).password
Password, which must be encrypted by the rsa algorithm.
sample
AuthClient.bindWechatByAccount("key", "张三", "xxxxxx", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
errorCode
499
The rsa algorithm failed to decrypt the password. Please check the request parameters.
¶ Binding by phone number verification code
If Login Mode is selected,the loginByWechatWithBind
interface will return 1640
or1641
status code, supported binding modes and key
,If the supported binding modes include phone-code
, you can invoke Binding by phone number verification code interface.
public static void bindWechatByPhoneCode(String key, String phoneCountryCode, String phone, String code, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.phoneCountryCode
Telephone country code. It can be empty. If it is empty, the default is+86
phone
mobile phone numbercode
sms verification code
sample
AuthClient.bindWechatByPhoneCode("key", "+86", "188xxxx8888", "1234", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
errorCode
2001
The verification code is incorrect.2001
The verification code is invalid. Obtain the verification code again.
¶ Binding by email verification code
If Login Mode is selected,the loginByWechatWithBind
interface will return 1640
or1641
status code, supported binding modes and key
,If the supported binding modes include email-code
, you can invoke Binding by email verification code interface.
public static void bindWechatByEmailCode(String key, String email, String code, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.email
email addresscode
email verification code
sample
AuthClient.bindWechatByEmailCode("key", "test@example.com", "1234", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
errorCode
2001
The verification code is incorrect.2001
The verification code is invalid. Obtain the verification code again.
¶ Select binding by multiple accounts
If Login Mode is selected,the loginByWechatWithBind
interface will return2921
status code, supported binding account data and key
,you can invoke Select binding by multiple accounts interface.
public static void bindWechatBySelectedAccountId(String key, String account, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.account
the selected account ID (Authing user) is returned by theloginByWechatWithBind
interface.
sample
AuthClient.bindWechatBySelectedAccountId("key", "638xxxxxxxxxxxxxx", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
¶ Binding by Account ID
If Login Mode is selected,the loginByWechatWithBind
interface will return 1640
or 1641
status code, supported binding account data and key
,you can invoke Binding by Account ID interface.
public static void bindWechatByAccountId(String key, String accountId, @NotNull AuthCallback<UserInfo> callback)
param
key
intermediate state key,Returned by theloginByWechatWithBind
interface.accountId
the account ID (Authing user ID) .
sample
AuthClient.bindWechatByAccountId("key", "638xxxxxxxxxxxxxx", new AuthCallback<UserInfo>() {
@Override
public void call(int code, String message, UserInfo data) {
if (code == 200) {
// successfully, data is user info.
}
}
});
