¶ Biometric authentication - WebAuthn passwordless authentication

¶ Integrated WebAuthn login

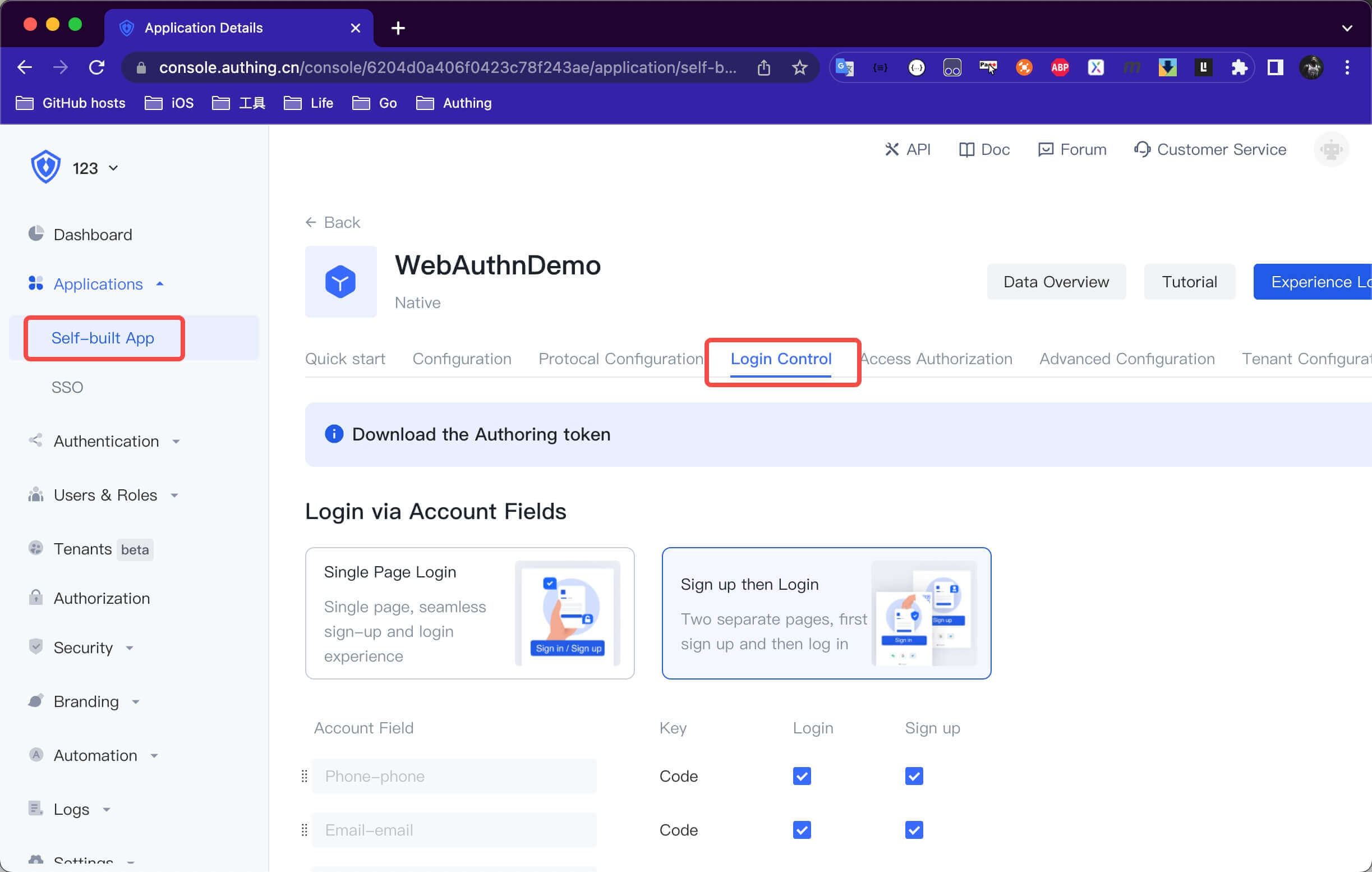

¶ Step 1: Open biometric authentication in Authing Management Console (opens new window)

1. Find the client application that needs to be started under the self-built application.
2. Click Login Control.

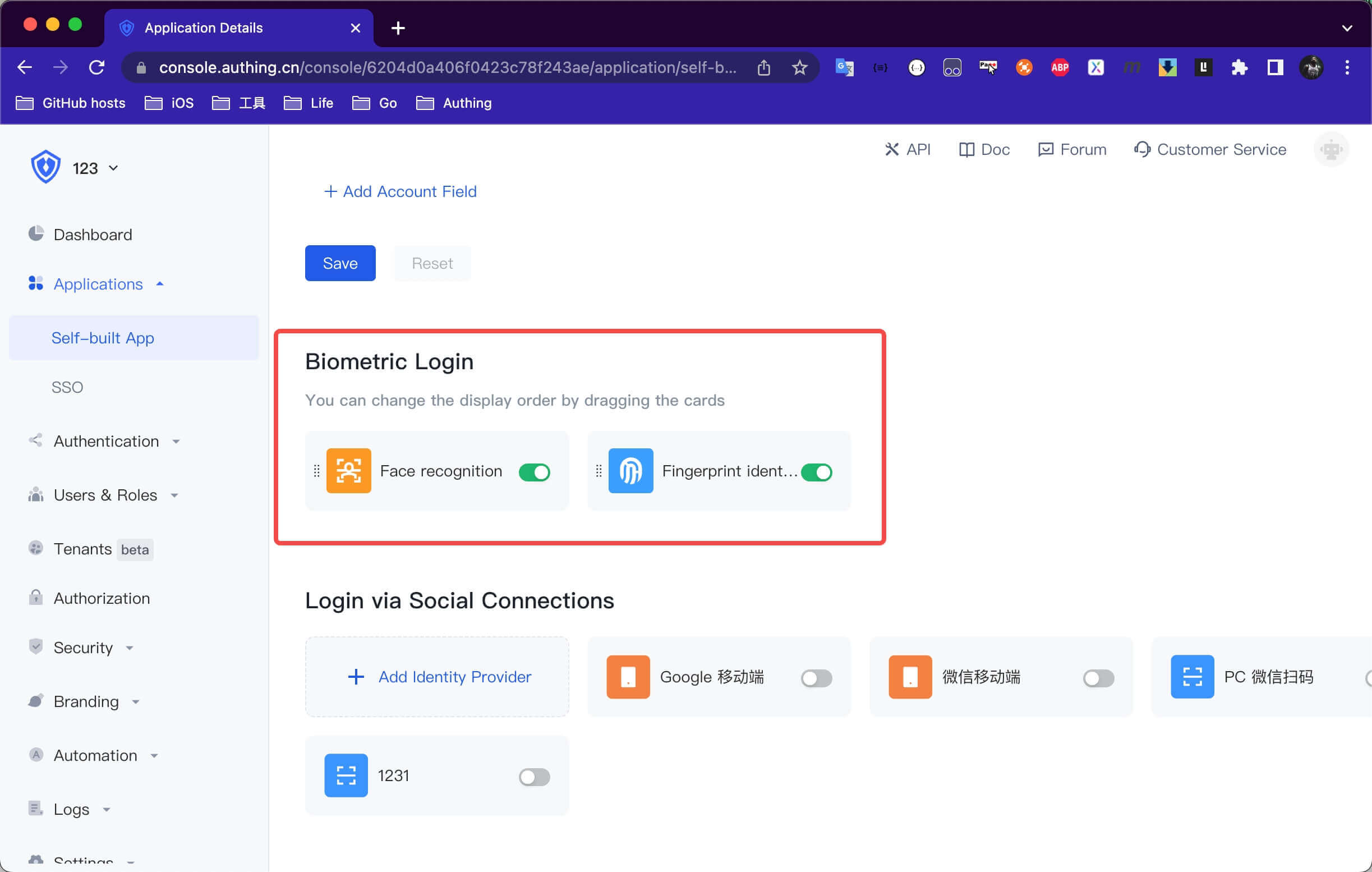

3. Tap Biometrics Control and turn on the switch.

¶ Step 2: Add WebAuthn login dependency

1. Enter: https://github.com/Authing/authing-binary in the swift package search bar.

2. Select Authing-binary (opens new window).

3. Select Up to Next Major Version 1.0.0 for the dependency rule.

4. Check WebAuthn after Add Package.

WebAuthn depends on the version after Guard-iOS 1.4.0 (opens new window).

¶ Login with WebAuthn

¶ Using the WebAuthn supercomponent

Authing WebAuthn SDK provides developers with the Biometric Authentication Button supercomponent, through which developers can integrate WebAuthn passwordless authentication within one minute.

¶ Using the WebAuthn API

If developers want to implement the WebAuthn authentication process by themselves, please refer to Custom-WebAuthn-Authentication Process and develop in combination with the following APIs.

¶ Get WebAuthn credential creation initialization parameters

Obtain the initialization parameters for WebAuthn credential creation, and the user must be logged in before calling this interface.

public func getWebauthnRegistrationParam(completion: @escaping(Int, String?, NSDictionary?) -> Void)

example

AuthClient().getWebauthnRegistrationParam() { code, message, data in
     // data. registrationOptions
}

¶ Verify WebAuthn Binding Registration Authenticator Credentials

Validate WebAuthn Binding Enrollment Authenticator Credentials

func webauthnRegistration(ticket: String, credentialId: String, rawId: String, attestationObject: String, clientDataJSON: String, authenticatorCode: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

parameter

• ticket Obtain the ticket when creating the initialization parameters of the credential
• credentialId Base64URL encoded credential ID
• rawId Base64URL original credential ID
• attestationObject Client data, including origin (that is, source of credential request), challenge and other information
• creclientDataJSONdentialId Base64URL encoded credential ID
• authenticatorCode credential information type: "fingerprint" "face" "other"

example

AuthClient().webauthnRegistration(ticket: ticket, credentialId: cid, rawId: rid, attestationObject: att, clientDataJSON: clidata, authenticatorCode: "face") { code, message, res in
}

¶ The server verifies the WebAuthn authentication request credentials

func webauthnAuthentication(ticket: String, credentialId: String, rawId: String, authenticatorData: String, userHandle: String, clientDataJSON: String, signature: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

parameter

• ticket The ticket obtained from the Get WebAuthn authentication request initialization parameter interface
• credentialId Base64URL encoded credential ID
• rawId Base64URL original credential ID
• authenticatorData Authenticator information, including authentication status, signature count, etc.
• userHandle The user ID when creating the credential
• clientDataJSON Client data, including origin (that is, the origin of the credential request), challenge code and other information
• signature authenticator signature

example

AuthClient().webauthnAuthentication(ticket: ticket, credentialId: cid, rawId: rawId, authenticatorData: attData, userHandle: userHandle, clientDataJSON: clientData, signature: sig) { code, message, res in
}

¶ Delete server-side WebAuthn authentication request credentials

func webauthnRemoveCredential(credentialID: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

parameter

• credentialID Base64URL encoded credential ID

example

AuthClient(). webauthnRemoveCredential(credentialID: cid) { code, message, res in
}

¶ Get the list of bound credentials

func checkWebauthnVaildCredentials(credentialIds: [String], authenticatorCode: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

parameter

• credentialIds Array of Base64URL encoded credential IDs
• authenticatorCode credential information type: "fingerprint" "face" "other"

example

AuthClient().checkWebauthnVaildCredentials(credentialIds: [cid], authenticatorCode: "face") { code, message, res in
}
