¶ WebAuthn 生物认证

更新时间: 2025-05-14 08:32:28
编辑

¶ 集成 WebAuthn 登录

¶ 第一步:在 Authing 管理控制台 (opens new window) 打开生物认证

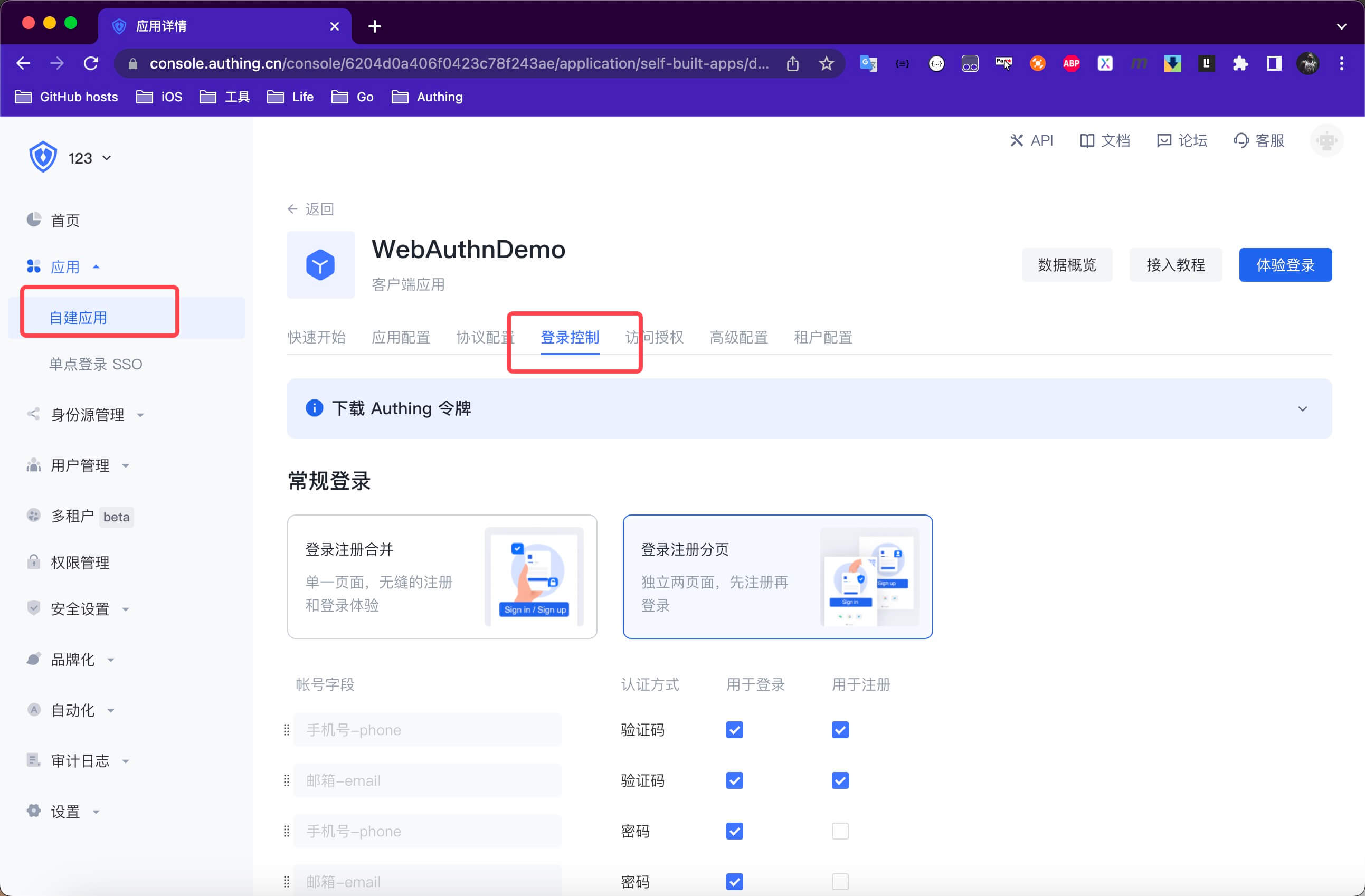

  1. 在自建应用下找到需要开启的客户端应用。
  2. 点击登录控制。

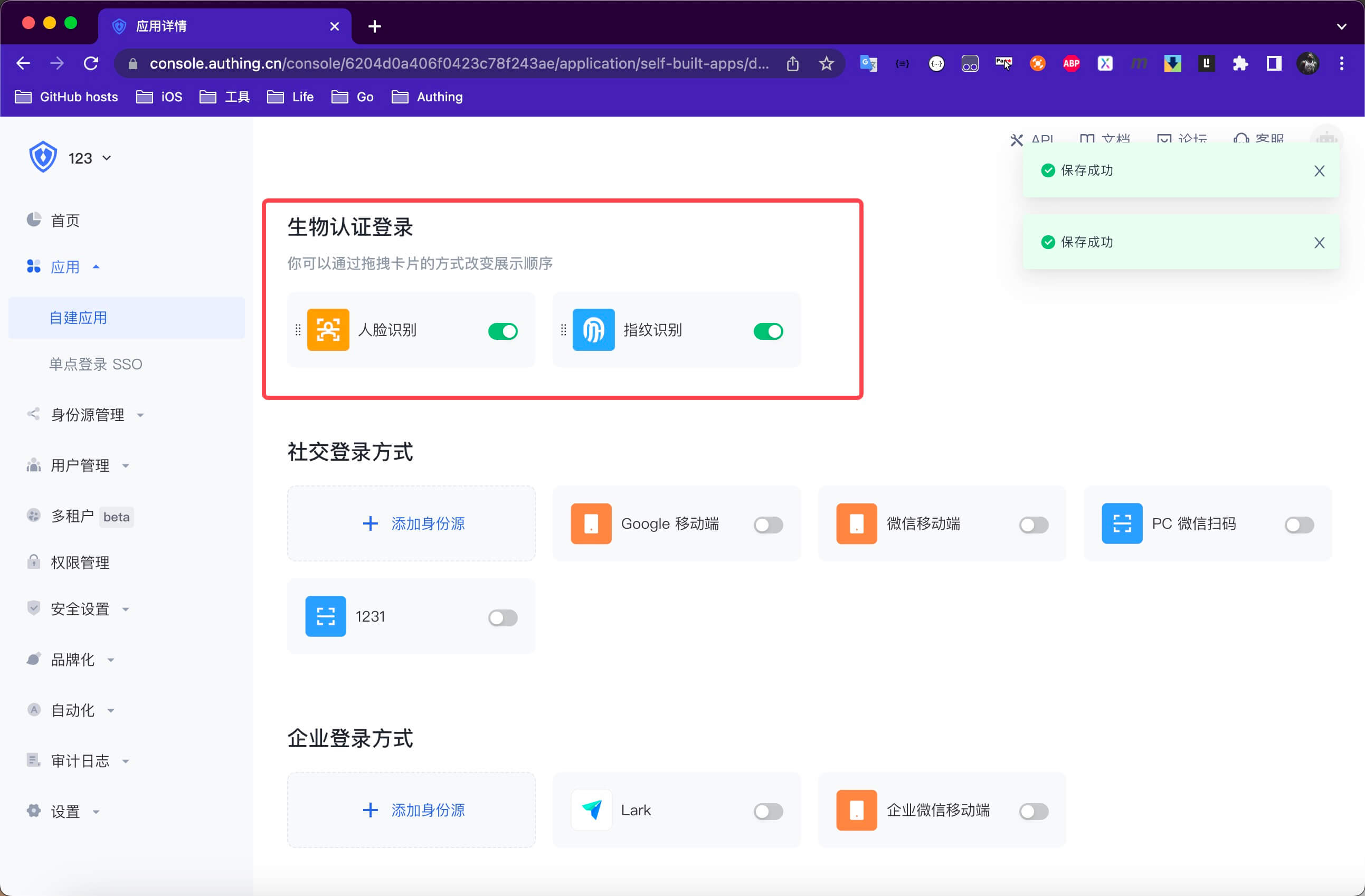

  3. 点击生物认证控制并开启开关。


¶ 第二步:添加 WebAuthn 登录依赖

  1. 在 swift package 搜索栏输入:https://github.com/Authing/authing-binary 。

  2. 选择 Authing-binary (opens new window)。

  3. 依赖规则选择 Up to Next Major Version 1.0.0 。

  4. Add Package 后勾选 WebAuthn 。

WebAuthn 依赖于 Guard-iOS 1.4.0 (opens new window) 之后版本。


¶ 使用 WebAuthn 登录

¶ 使用 WebAuthn 超组件

Authing WebAuthn SDK 为开发者提供了生物认证按钮超组件,开发者可以通过此组件一分钟集成 WebAuthn 无密码认证。

¶ 使用 WebAuthn API

如果开发者想自己实现 WebAuthn 认证流程,可参阅自定义-WebAuthn-认证流程,结合以下 API 进行开发。

¶ 获取 WebAuthn 凭证创建初始化参数

获取 WebAuthn 凭证创建初始化参数,调用此接口前需要用户已登录。

public func getWebauthnRegistrationParam(completion: @escaping(Int, String?, NSDictionary?) -> Void)

示例

AuthClient().getWebauthnRegistrationParam() { code, message, data in
    // data.registrationOptions
}

¶ 验证 WebAuthn 绑定注册认证器凭证

验证 WebAuthn 绑定注册认证器凭证

func webauthnRegistration(ticket: String, credentialId: String, rawId: String, attestationObject: String, clientDataJSON: String, authenticatorCode: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

参数

  • ticket 获取凭证创建初始化参数时的 ticket
  • credentialId Base64URL 编码的凭证 ID
  • rawId Base64URL 原始凭证 ID
  • attestationObject 客户端数据,包含 origin(即凭证请求来源)、挑战等信息
  • creclientDataJSONdentialId Base64URL 编码的凭证 ID
  • authenticatorCode 凭证信息类型:"fingerprint" "face" "other"

示例

AuthClient().webauthnRegistration(ticket: ticket, credentialId: cid, rawId: rid, attestationObject: att, clientDataJSON: clidata, authenticatorCode: "face") { code, message, res in
}

¶ 服务端验证 WebAuthn 认证请求凭证

func webauthnAuthentication(ticket: String, credentialId: String, rawId: String, authenticatorData: String, userHandle: String, clientDataJSON: String, signature: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

参数

  • ticket 从 获取 WebAuthn 认证请求初始化参数接口 获得的 ticket
  • credentialId Base64URL 编码的凭证 ID
  • rawId Base64URL 原始凭证 ID
  • authenticatorData 认证器信息,包含认证状态、签名计数等
  • userHandle 创建凭证时的用户 ID
  • clientDataJSON 客户端数据,包含 origin(即凭证请求来源)、挑战码等信息
  • signature 认证器签名

示例

AuthClient().webauthnAuthentication(ticket: ticket, credentialId: cid, rawId: rawId, authenticatorData: attData, userHandle: userHandle, clientDataJSON: clientData, signature: sig) { code, message, res in
}

¶ 删除服务端 WebAuthn 认证请求凭证

func webauthnRemoveCredential(credentialID: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

参数

  • credentialID Base64URL 编码的凭证 ID

示例

AuthClient().webauthnRemoveCredential(credentialID: cid) { code, message, res in
}

¶ 获取已绑定的凭证列表

func checkWebauthnVaildCredentitals(credentialIds: [String], authenticatorCode: String, completion: @escaping(Int, String?, NSDictionary?) -> Void)

参数

  • credentialIds Base64URL 编码的凭证 ID 的数组
  • authenticatorCode 凭证信息类型:"fingerprint" "face" "other"

示例

AuthClient().checkWebauthnVaildCredentitals(credentialIds: [cid], authenticatorCode: "face") { code, message, res in
}
